Overview

Features & Specifications

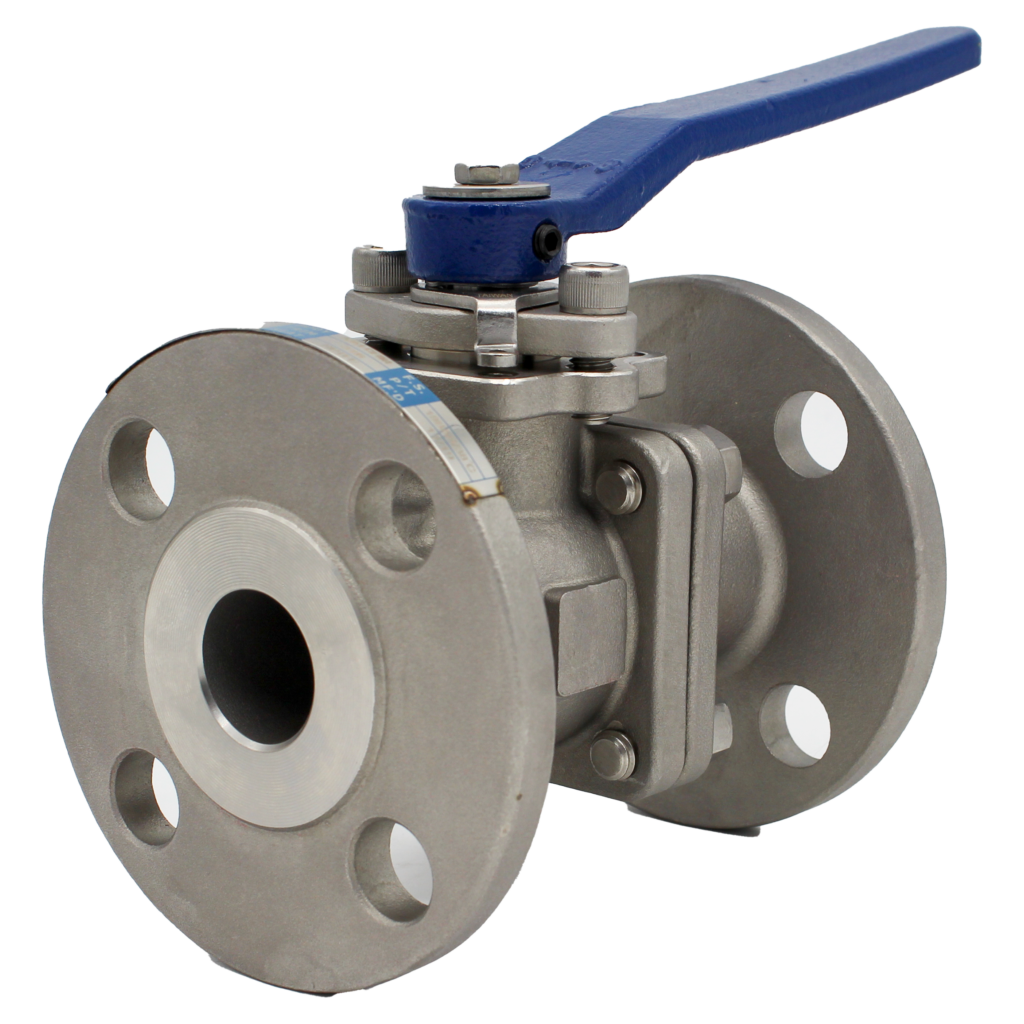

• ASTM 316 grade stainless steel
• ANSI 150 lbs flanged ends
• Live loaded, blowout proof stem design
• 2-piece full port, anti-static device
• Suitable for automation
• Standard lockable handle
• Available gear operator
• ½”–8″ size range
• Various sealing materials and carbon steel options
• SST x PTFE seating options for steam applications

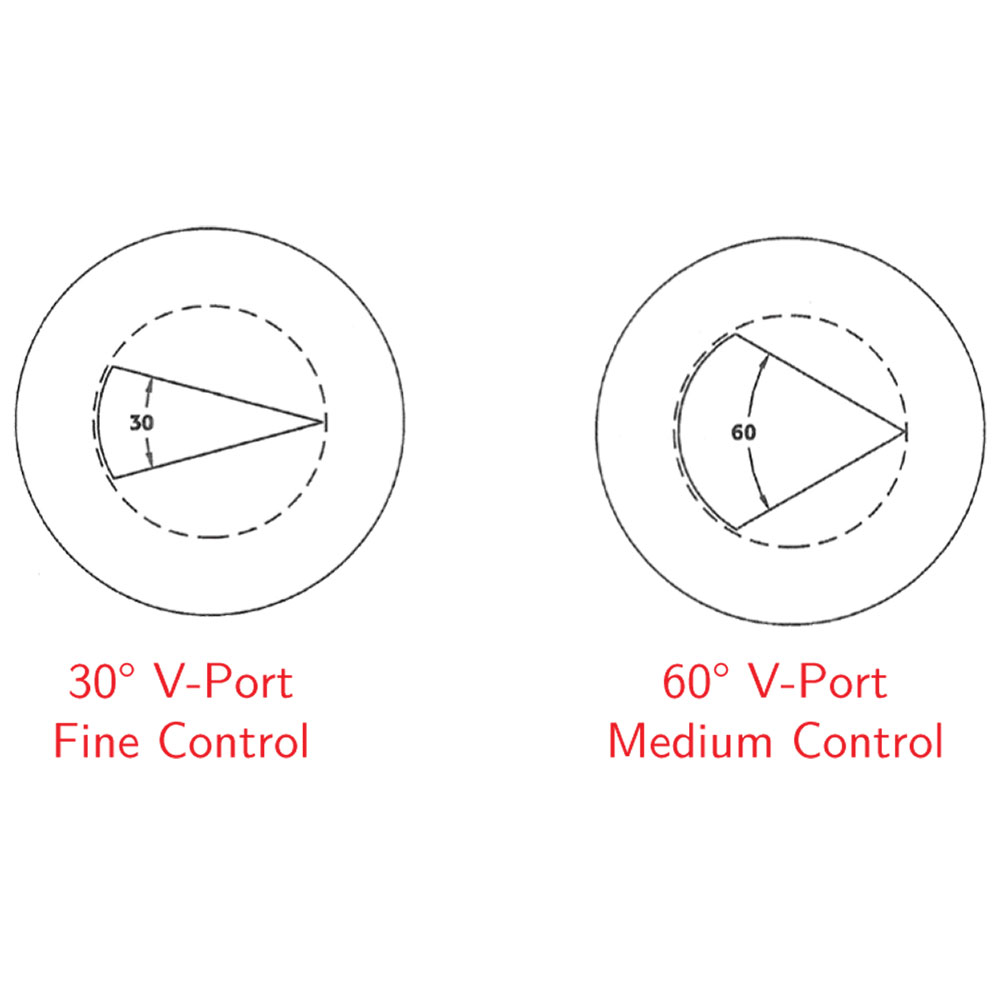

• V-Port available
