Overview

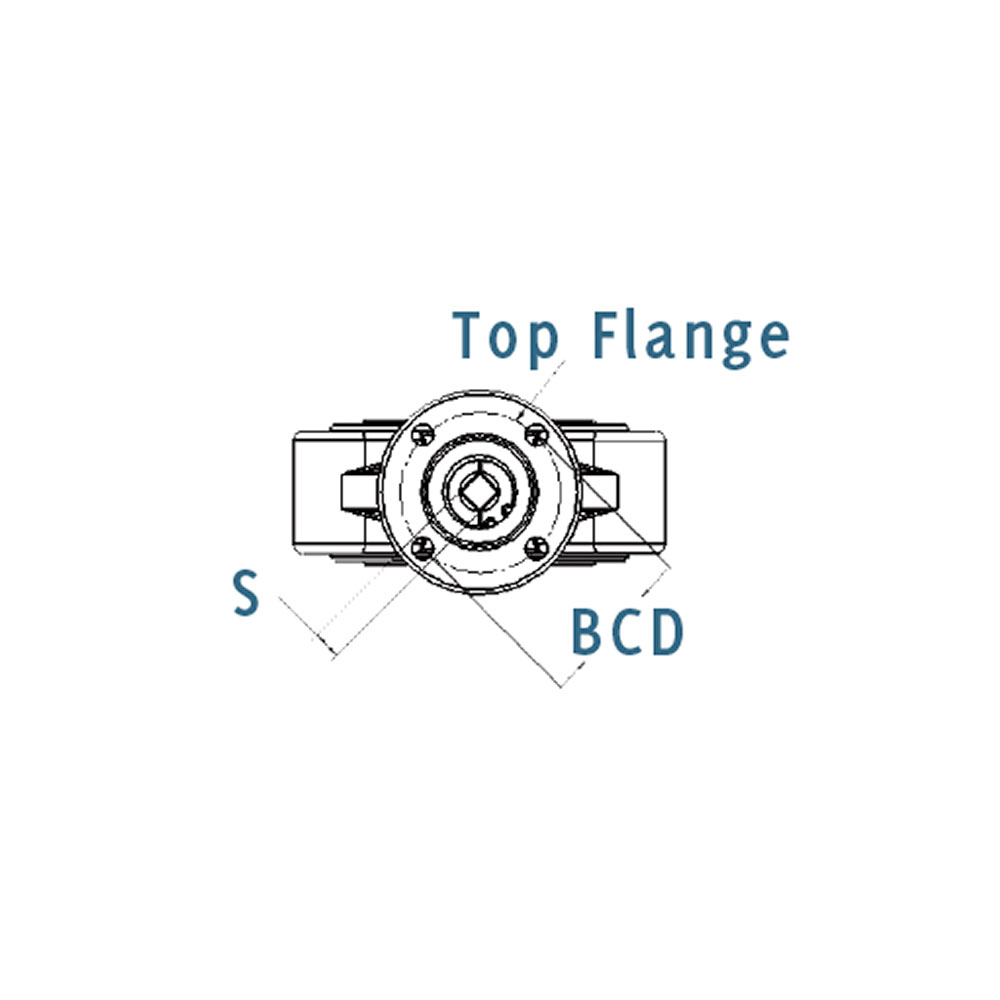

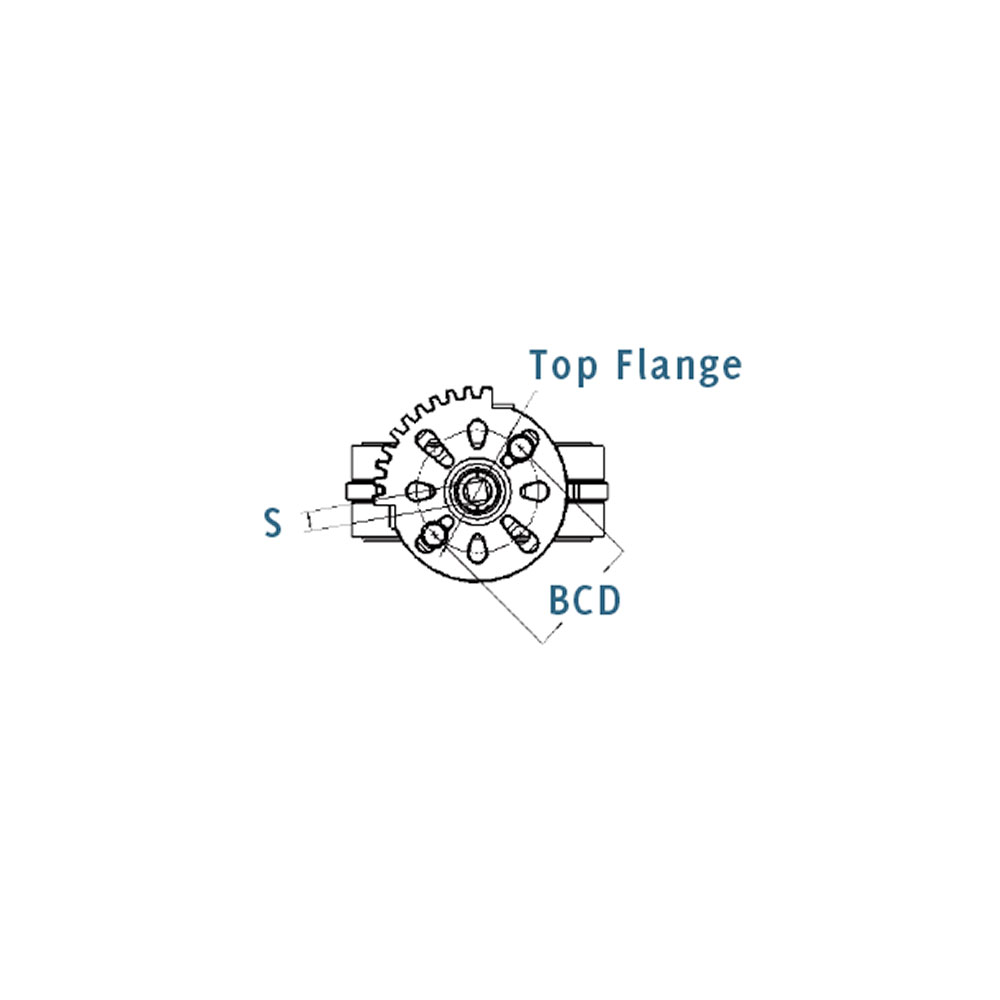

All exposed components are stainless steel with an ISO 5211 top mounting flange and 150 PSI bi-directional rating. connection flanges conform to ANSI Class 150 standards and has no tapered pins for maximum durability.

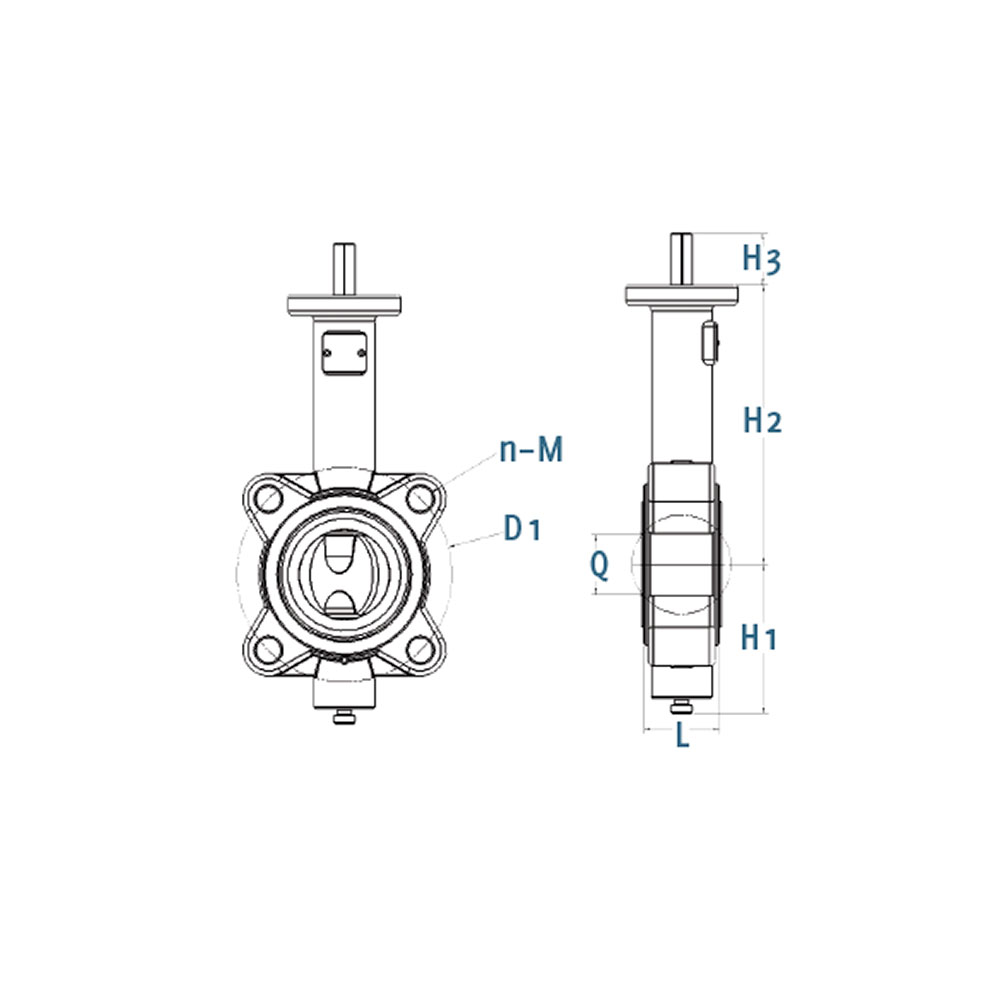

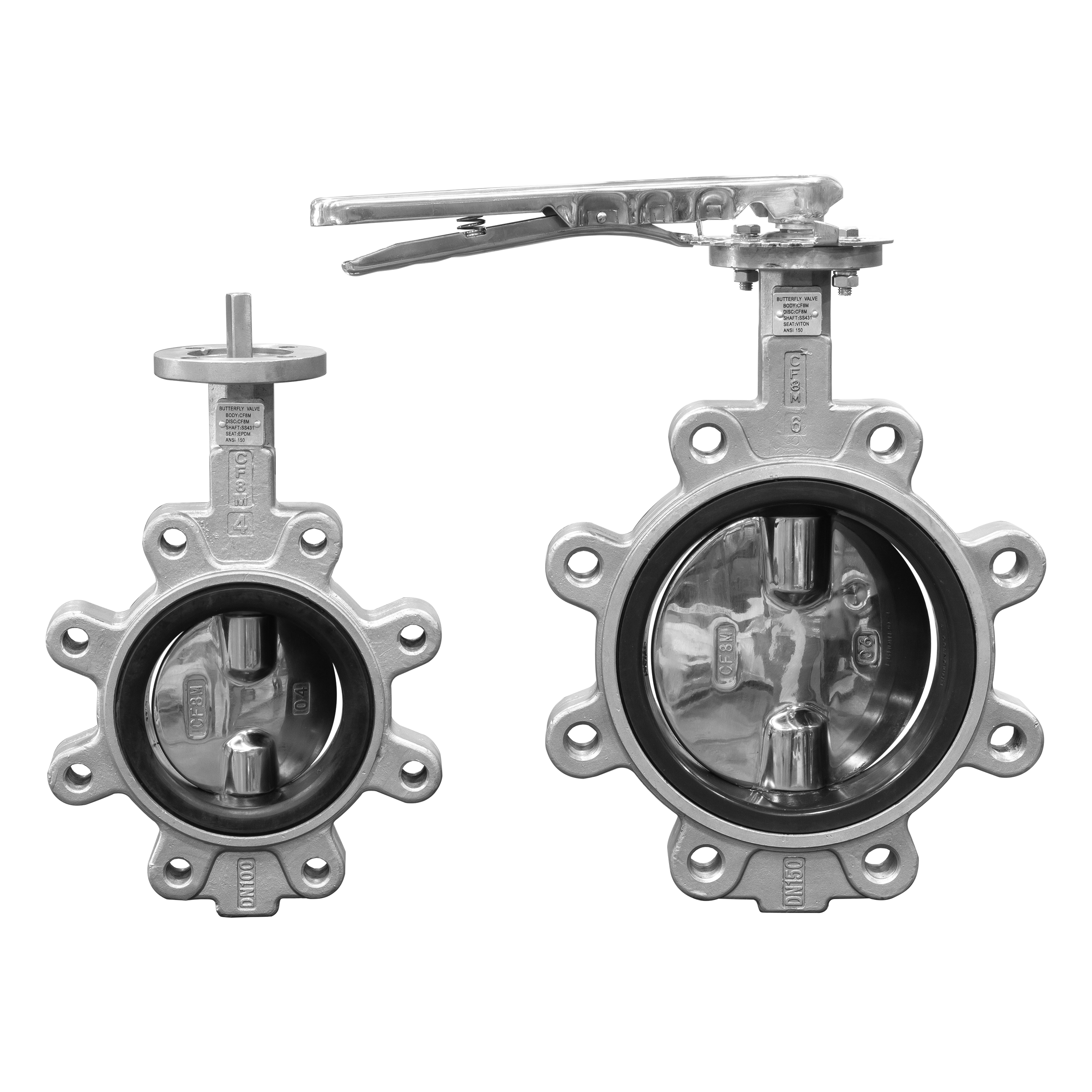

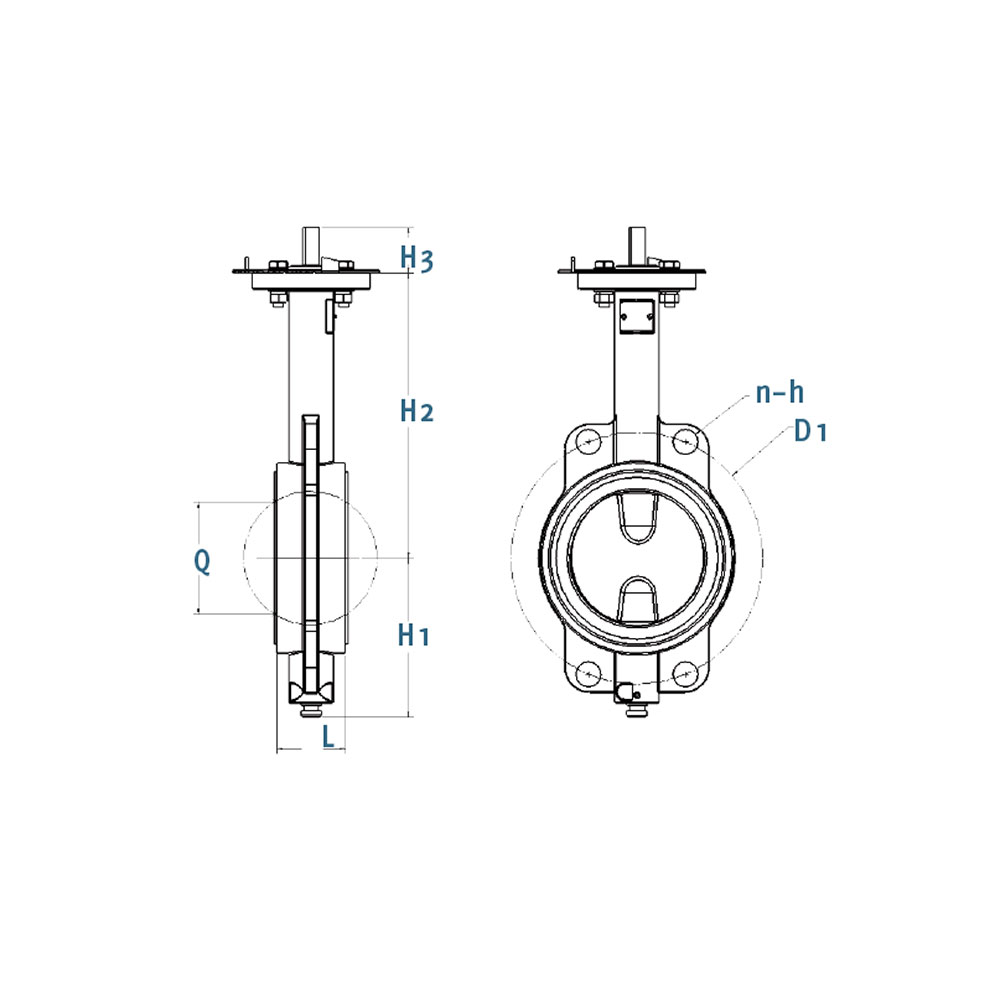

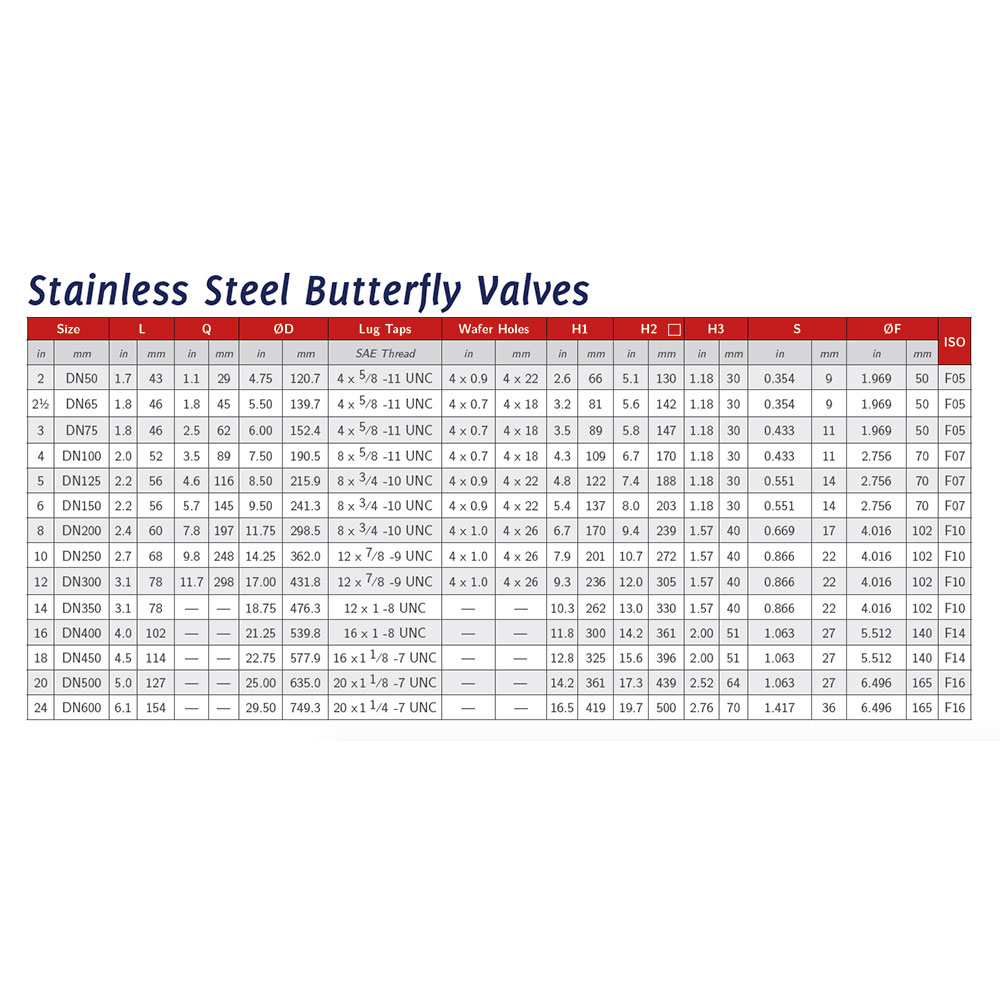

• Sizes 2” through 12” available, wafer or lug
• 316 stainless disc has mirror polish
• Variety of disc and seal materials available
• Conforms to MSS–SP–67, MSS–SP–25, API–609
• Designed for blowout proof service
• High Cv slim disc design
• Easily field repairable
• 10-position handle
