Overview

Our High Performance Butterfly Valves are designed for demanding applications. Unique seat and body construction allows for easy configurability and maintenance, without compromising shut off capability or service life.

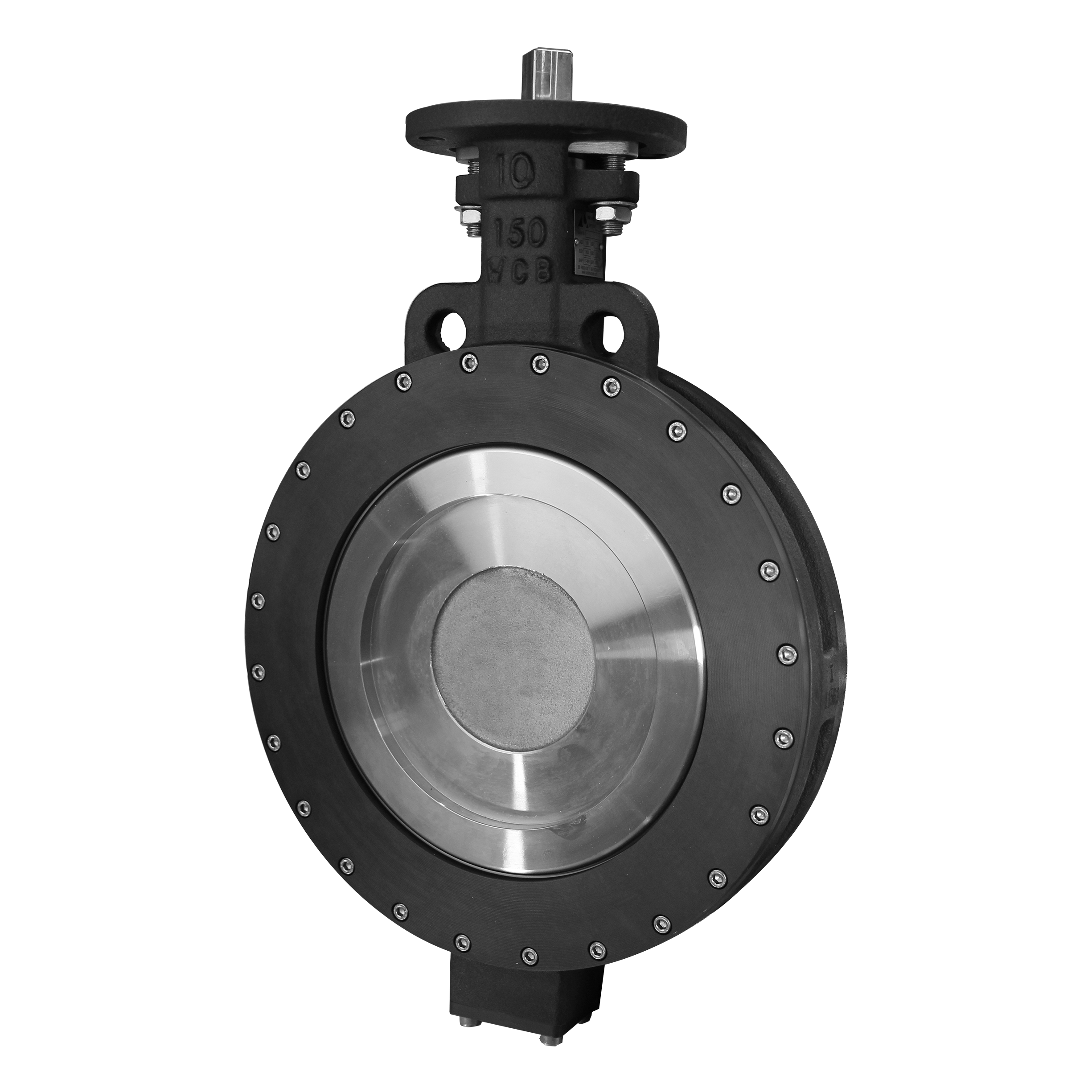

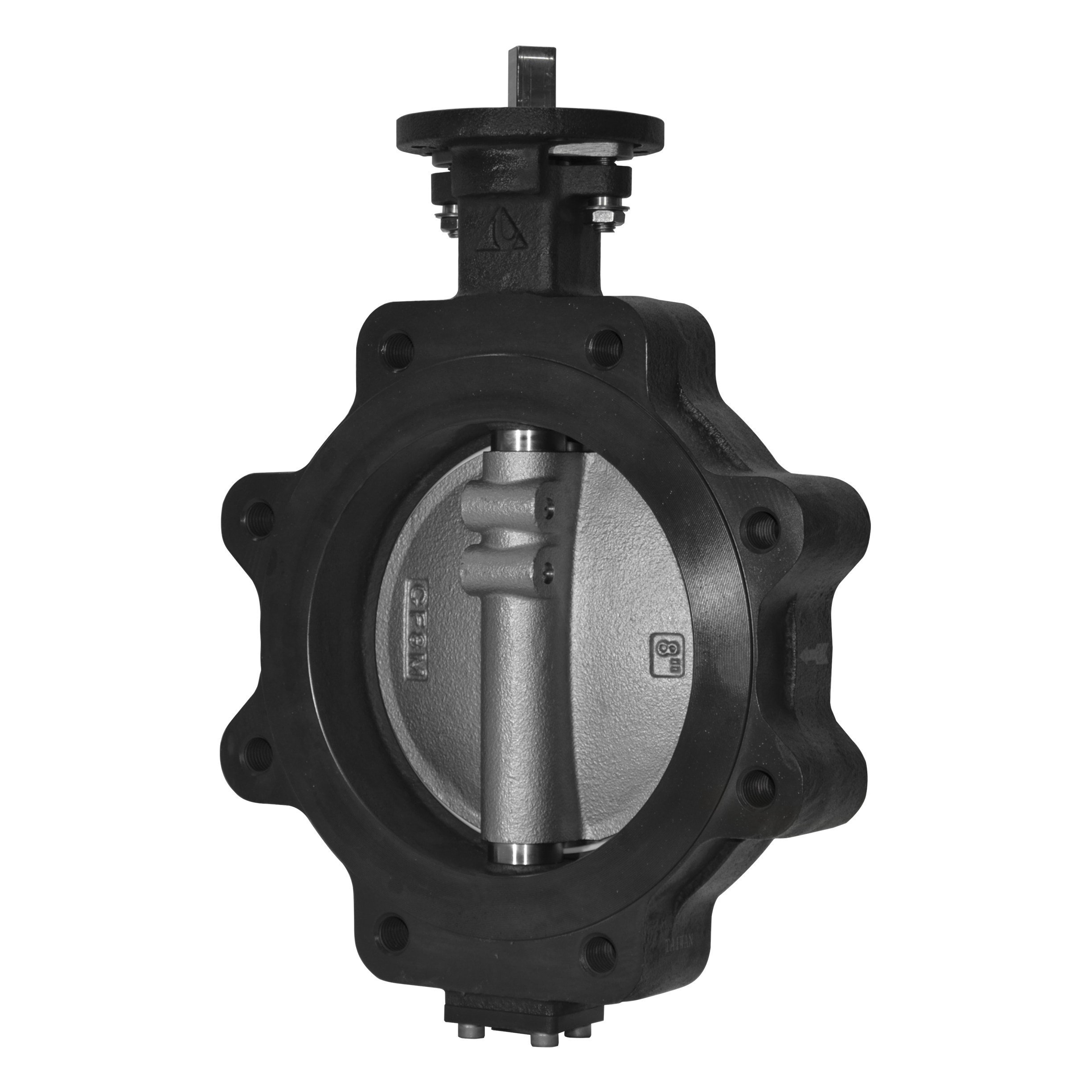

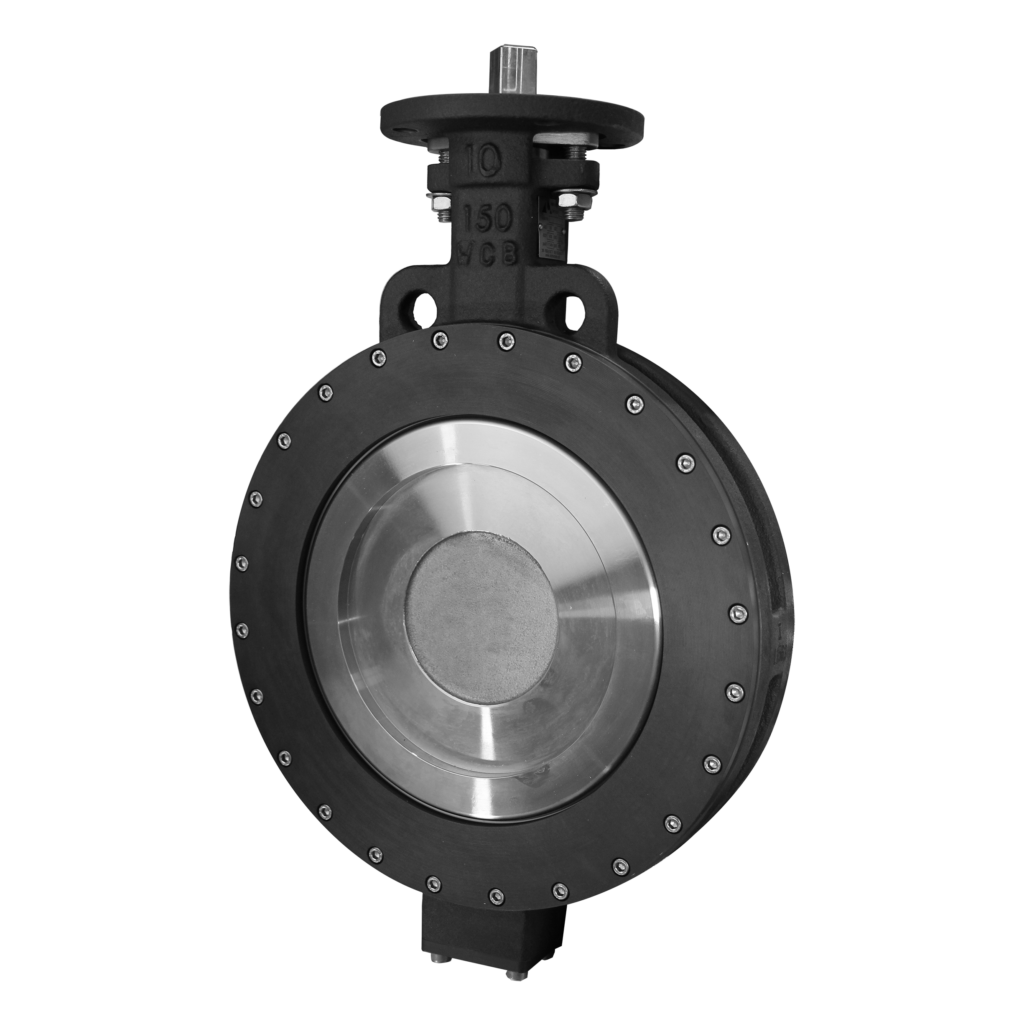

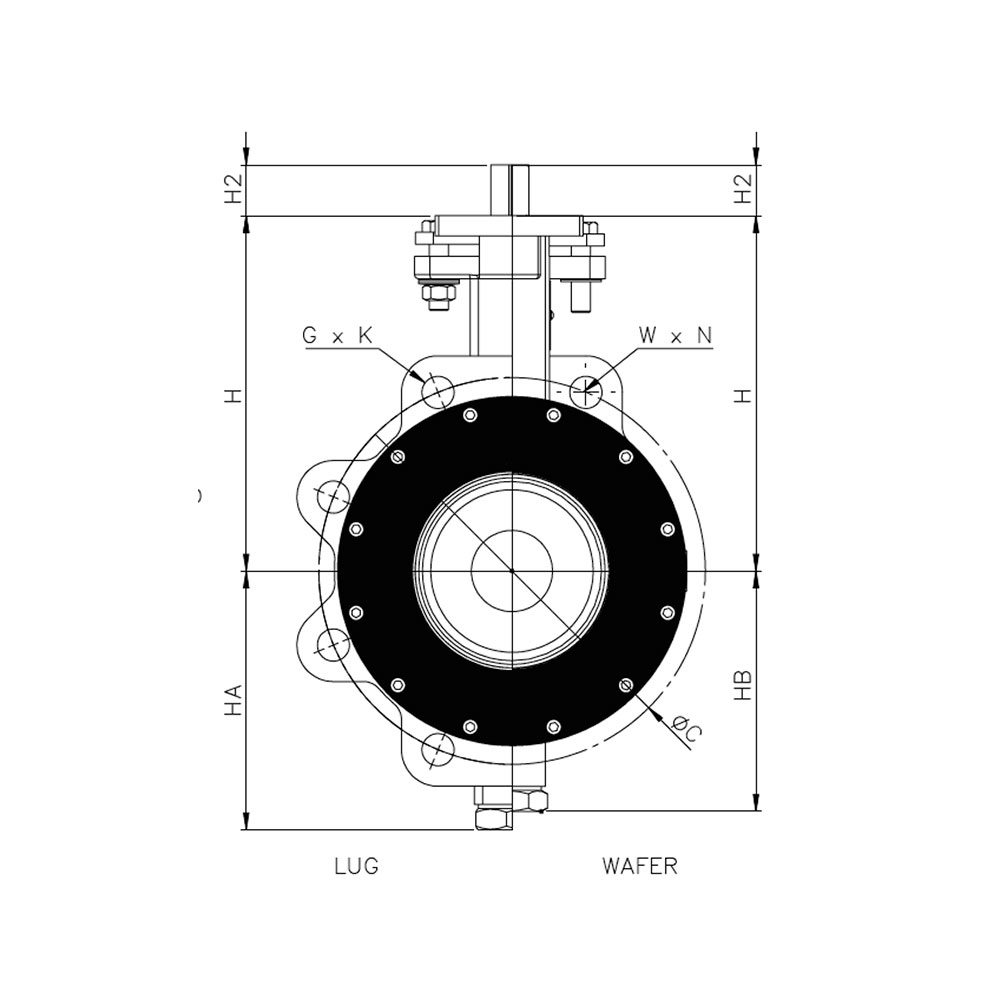

• ANSI 316 CLASS 150 Lug and Wafer Style

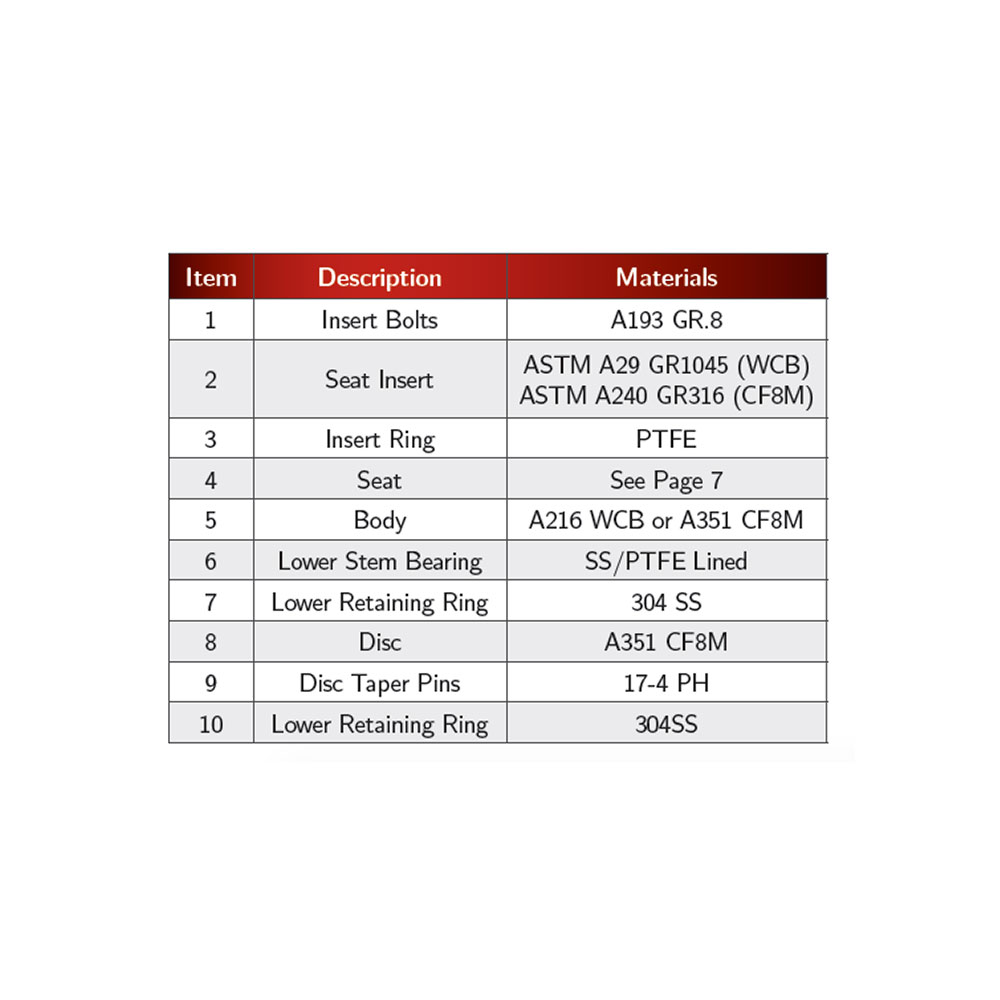

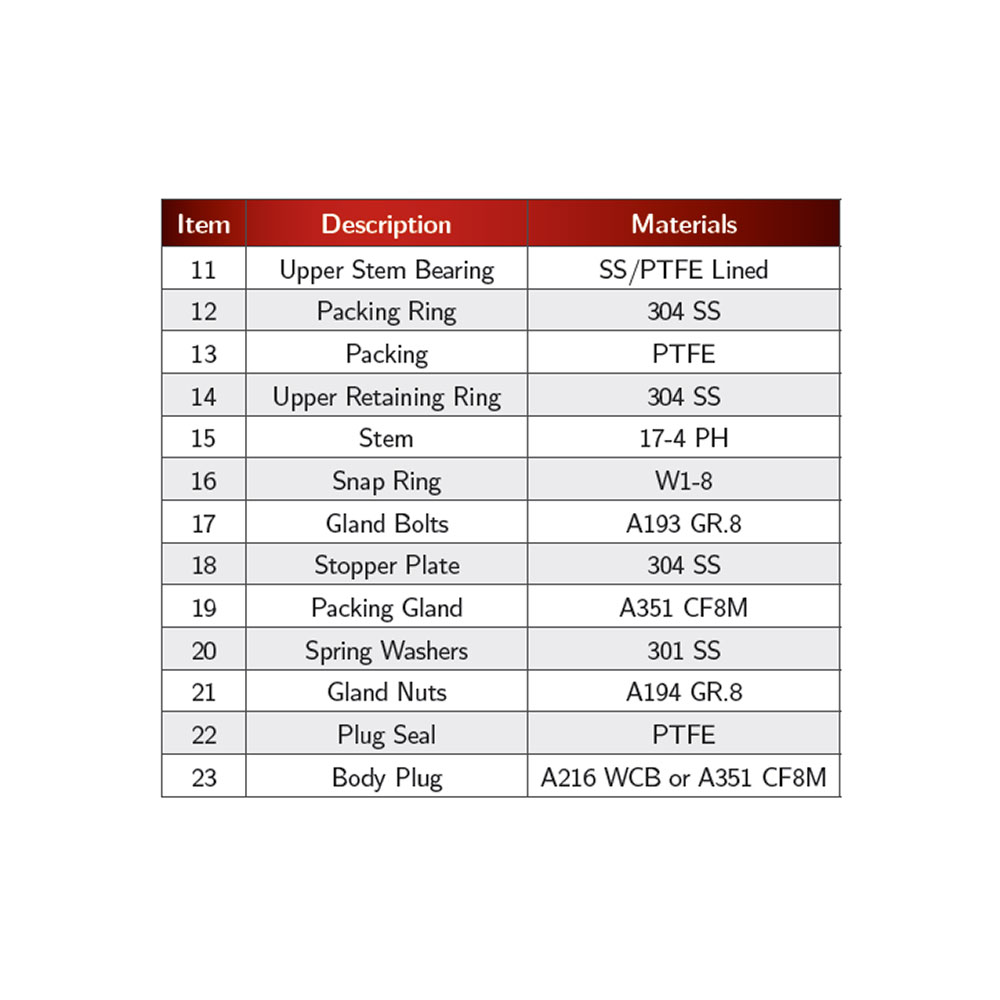

• WCB or CF*M Body, Stainless Disc & Stem
• 15% Glass RTFE Standard
• 100% Virgin PTFE, TFM 1600 Seats Optional

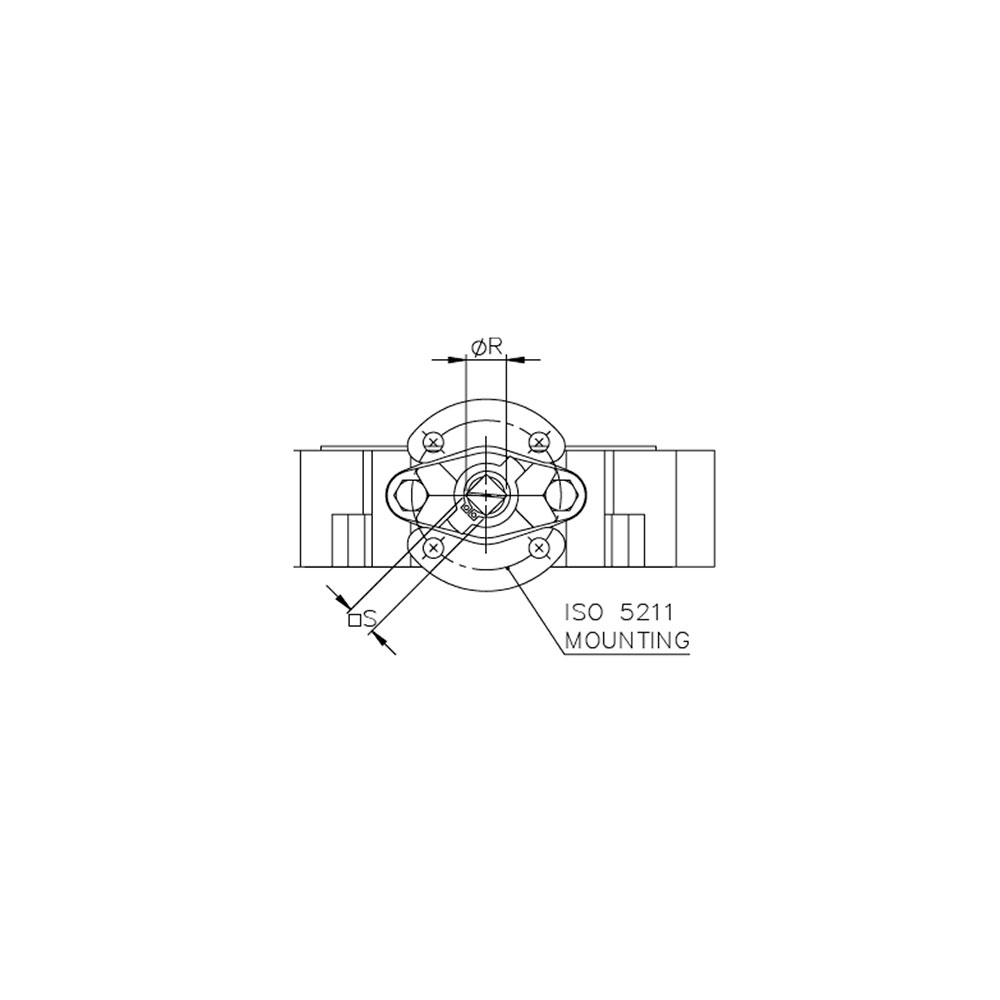

• ISO 5211 Direct Mount
• Double Offset “Secure Arc Seal” Technology
• Bubble Tight Bi-Directional Shutoff
• Suitable for Dead-End Service
• Blow-out Proof Stem
