Overview
Features & Specifications

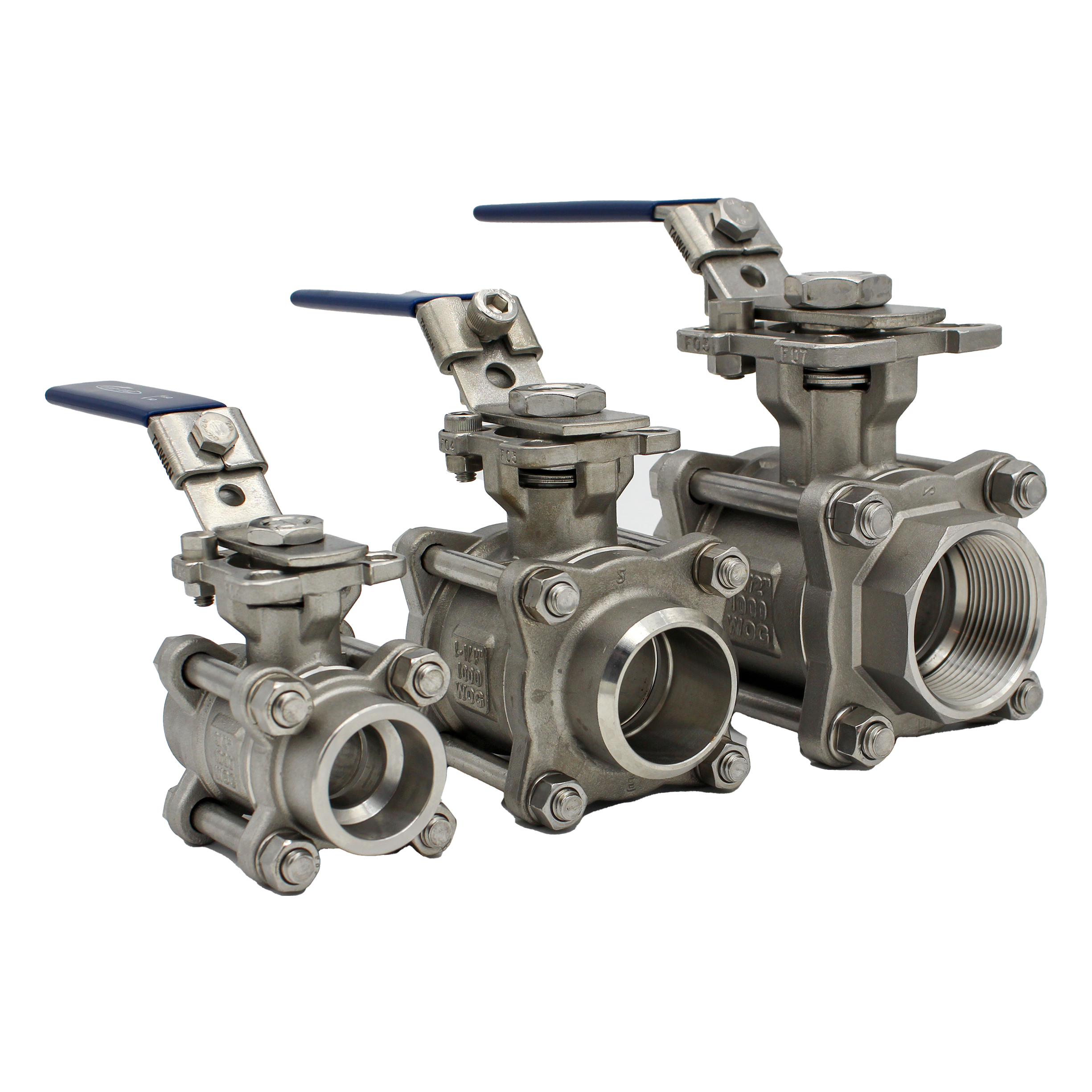

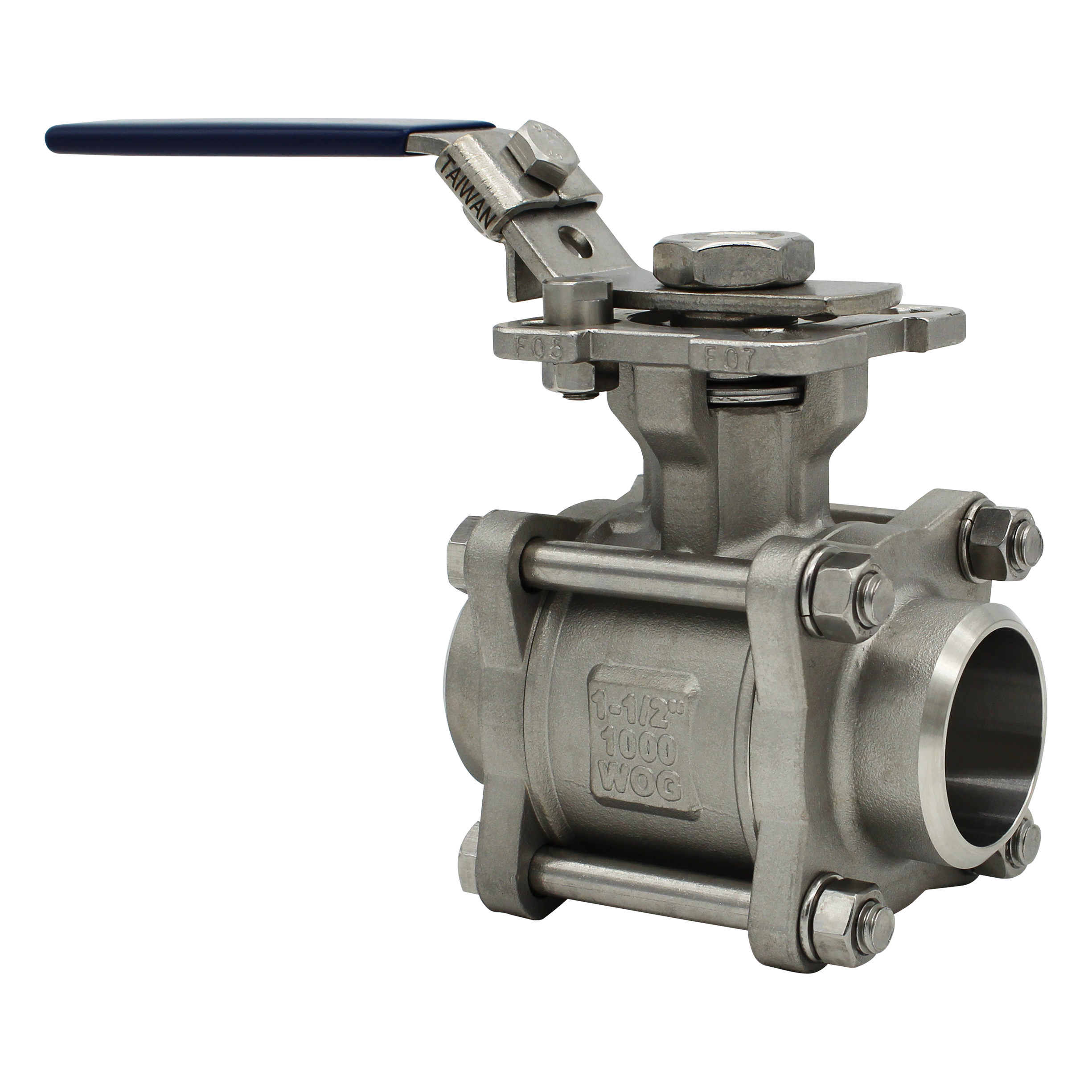

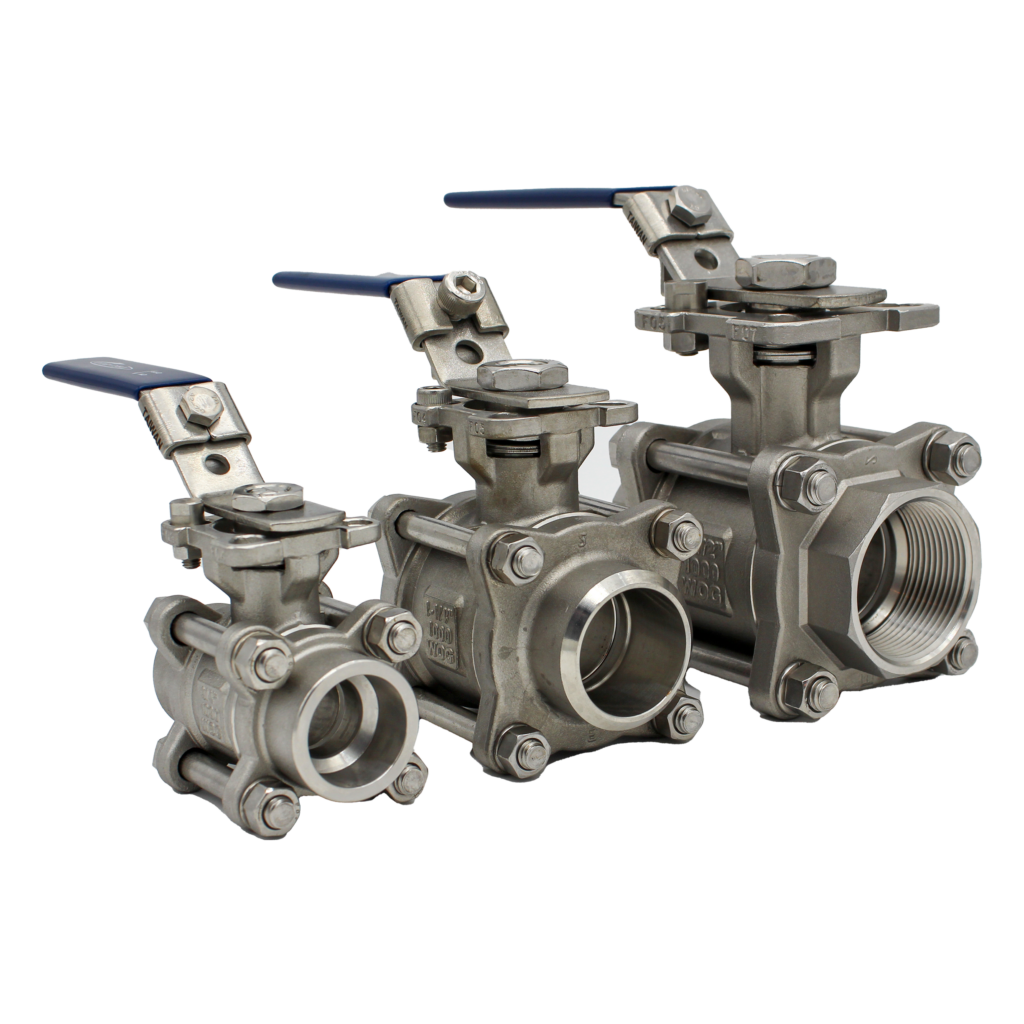

- 3-piece 316 SS investment cast body and components
- Maintenance free live loaded, self-adjusting stem packing
- 1000 PSI WOG rating
- Cavity filled and regular seating available in various stocked materials: RPTFE, VPTFE, TFM1600, UHMWPE, SSTxPTFE
- Optimum sealing for high cycle applications with V-ring chevron packing, belleville washers, and two VITON® o-rings as a secondary defense against leaking
- Blowout proof stem full port, split body design
- ISO 5211 direct mounting to actuator
- Option: 150# Flanged Ends for regular & cavity filled styles

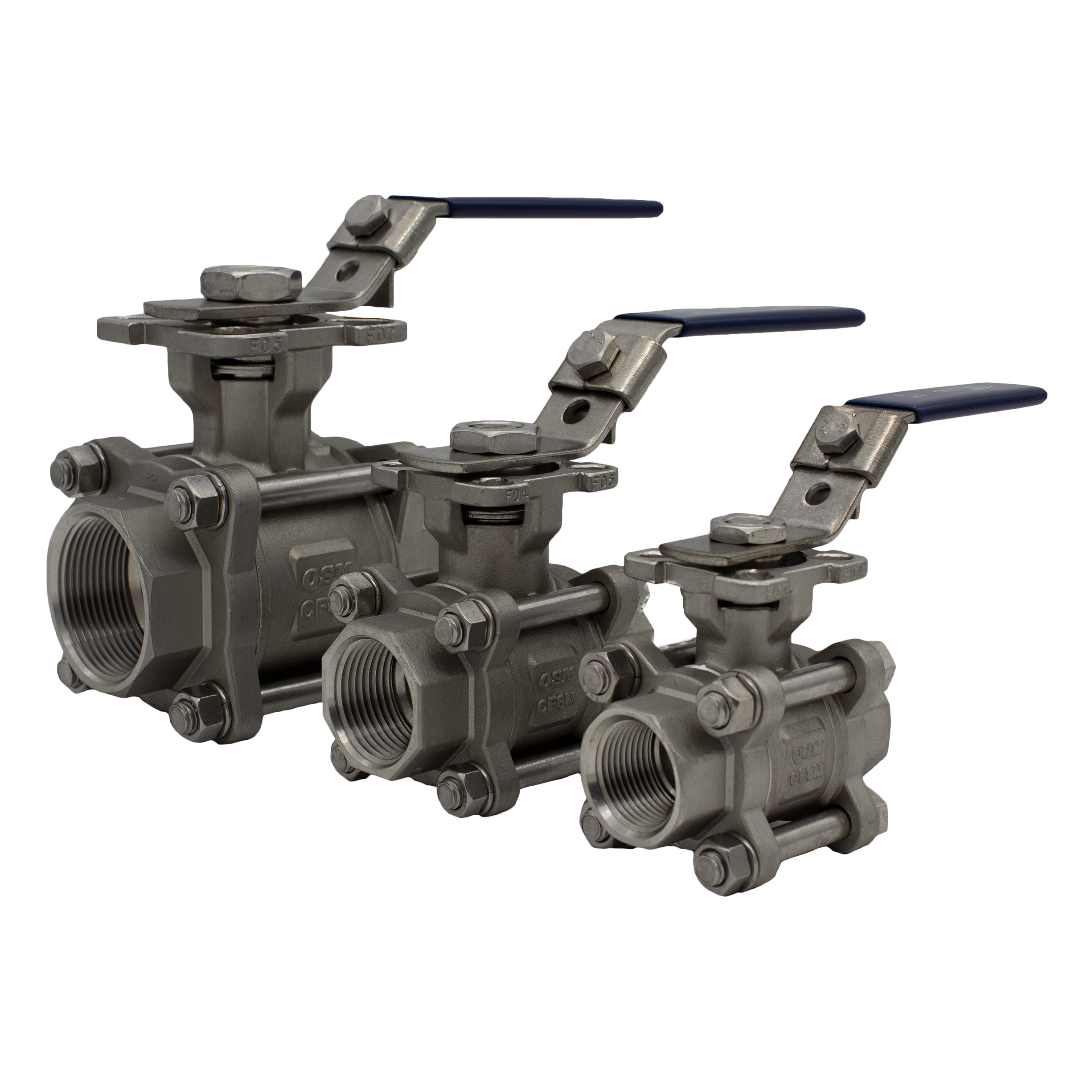

- SE ANSI B2.1, B16.34 Threaded (NPT)

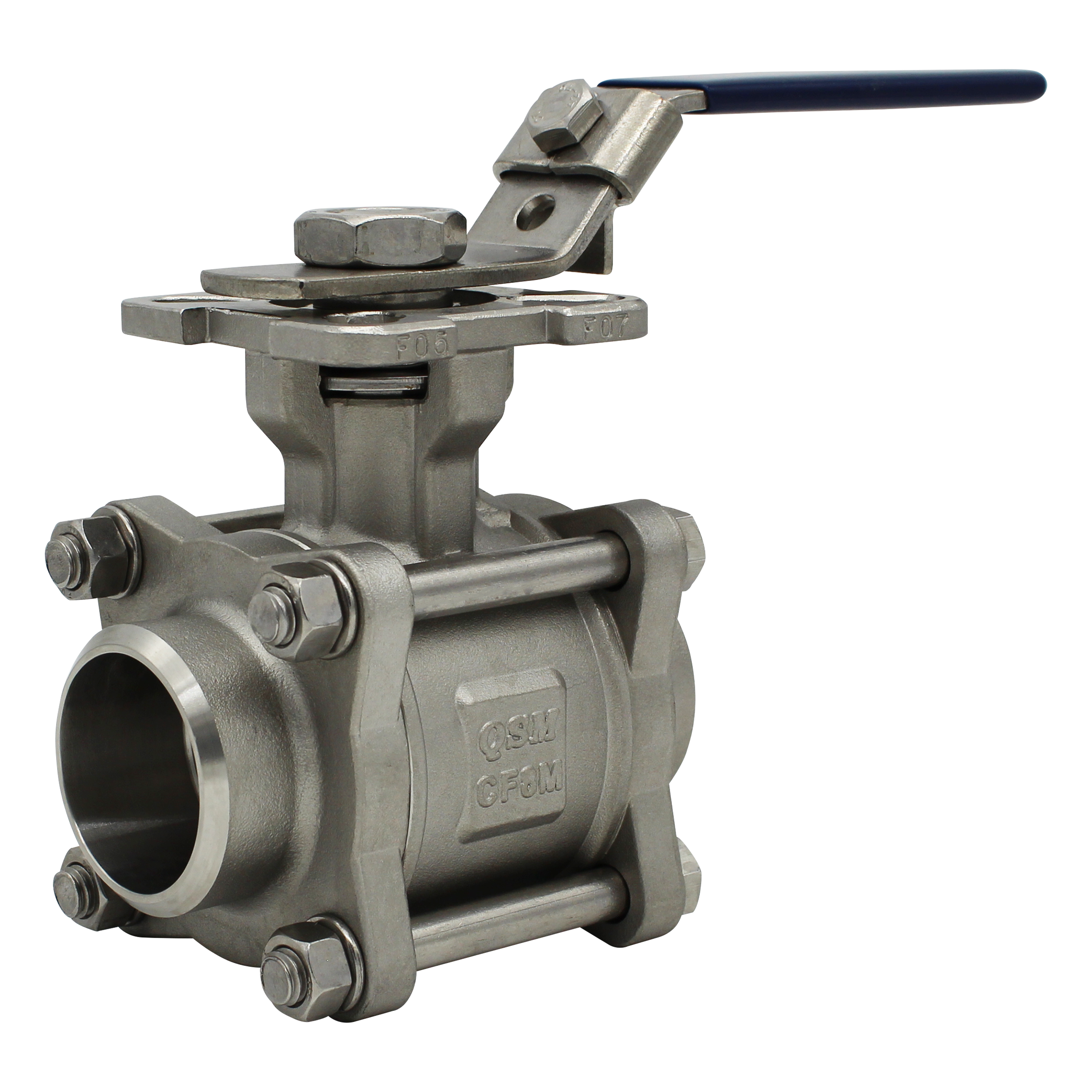

- BW ANSI B16.25 Butt Weld

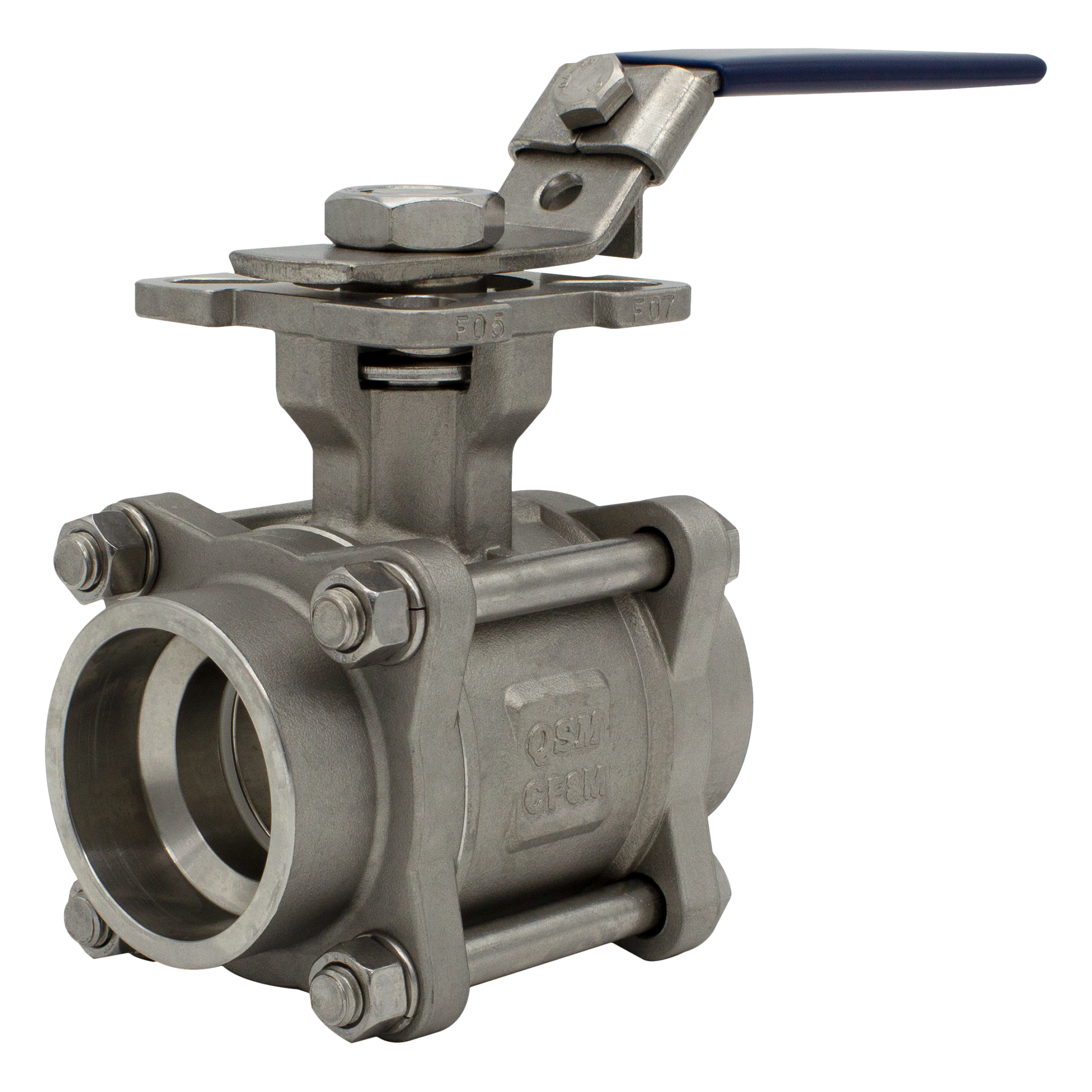

- SW ANSI B16.11 Socket Weld
