Overview
Features & Specifications
- Provides positive seal at every port
- Direct mounting ISO5211 pad facilitates easy automation and a smaller valve footprint for restrictive applications
- Spring loaded washers create live-loaded, self-adjusting stem assembly reducing maintenance costs
- Suitable for high cycle applications in manual or automated conditions–double seal leak protection
- 316/316L stainless steel, full port in 8–12 Ra finish
- Using body cavity fillers meets FDA, USDA & 3A requirements
- Available options: Tri-Clamp® or butt-weld; cavity filled is standard;

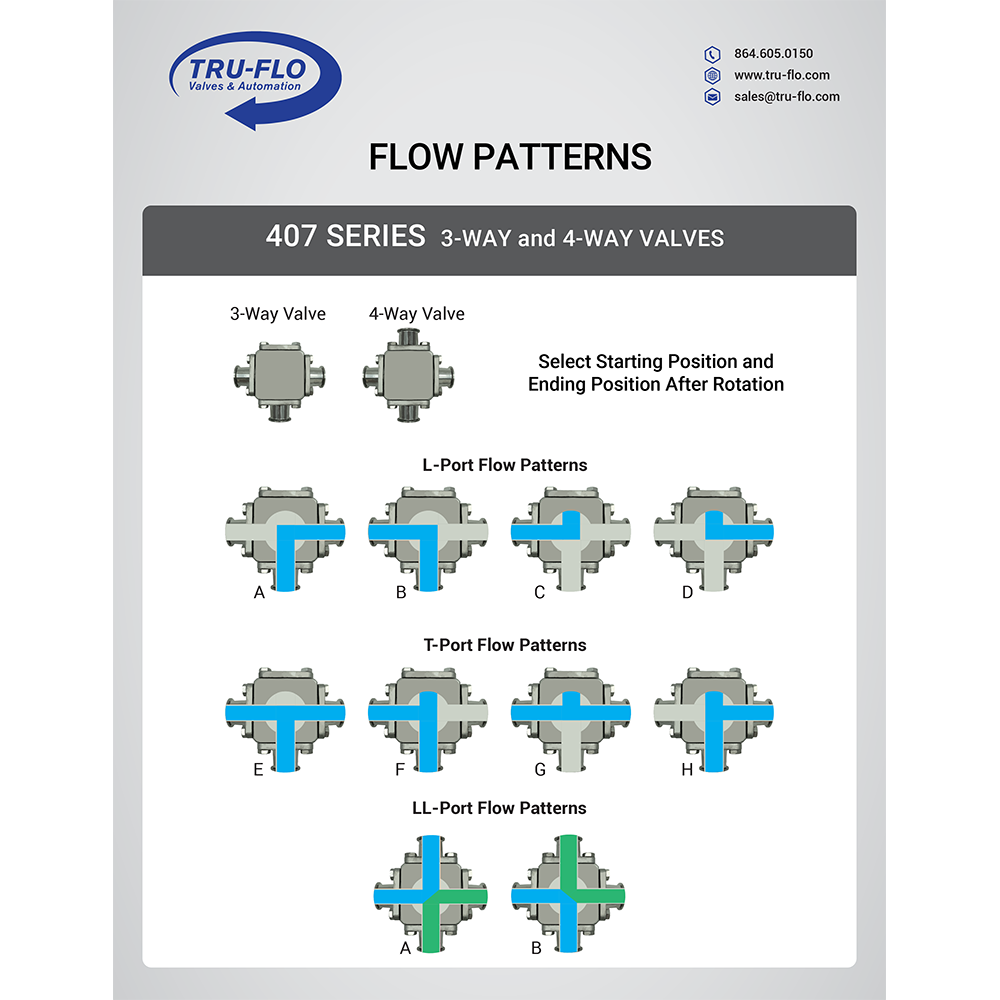

- L-Port or T-Port configuration; 4-way double LL ball available
