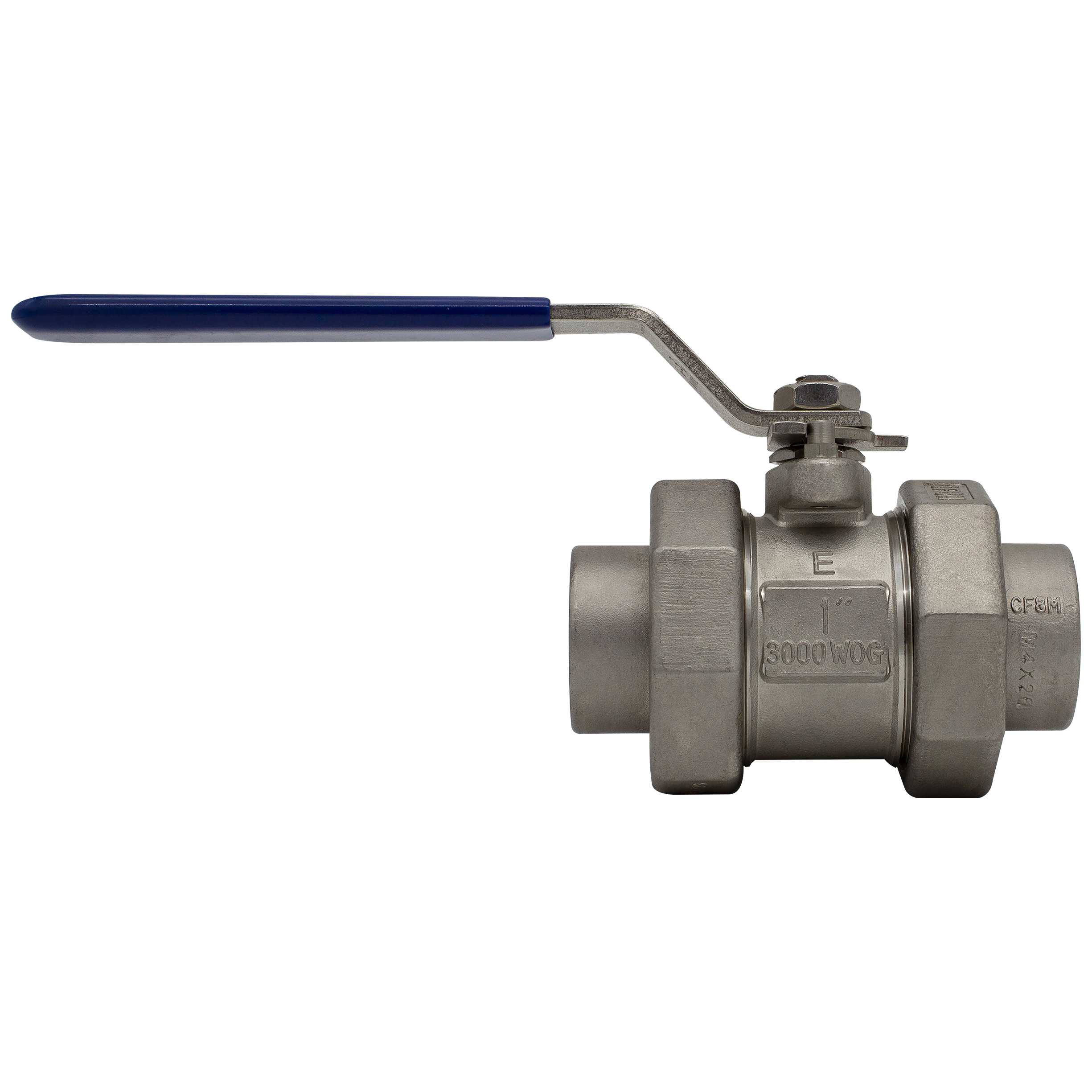

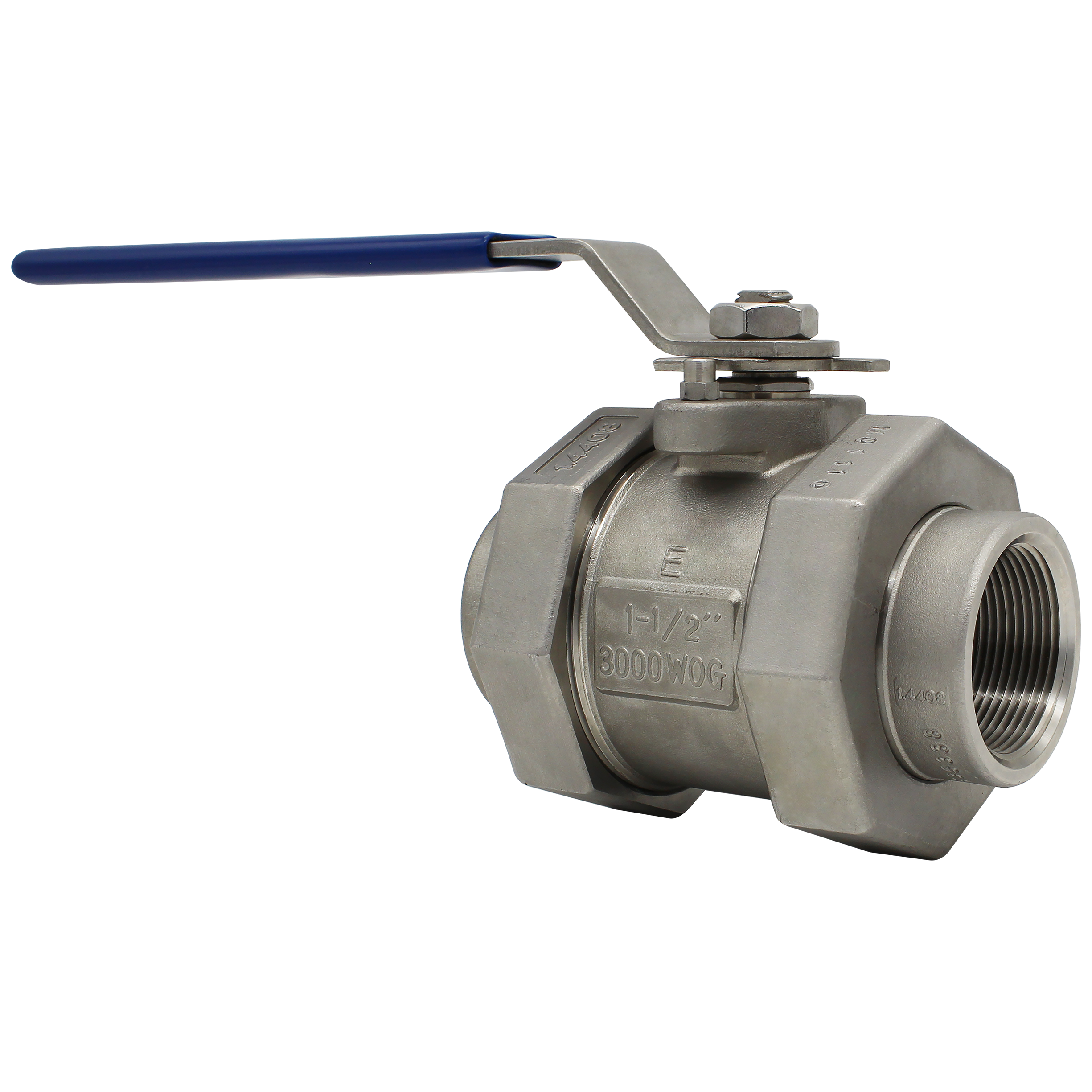

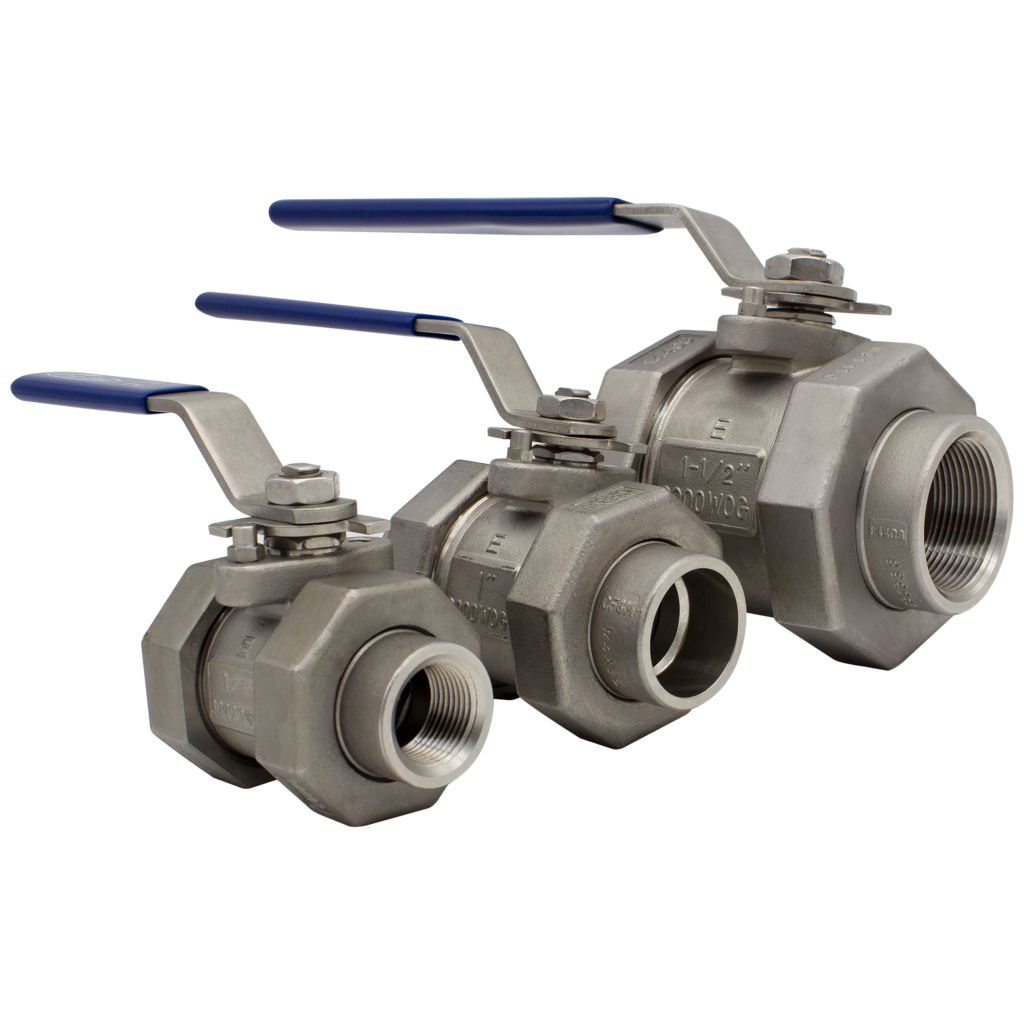

HSBV-501 Double Union

Overview

Features & Specifications

  • Suitable for water borne paint applications
  • Full port flow with self-contained center section
  • 3-pc lug style body design for easy inline inspection and repair
  • Mounting pad
  • Investment cast 316 stainless steel construction
  • Blowout proof, bottom entry design
  • 2000 PSI WOG working pressure

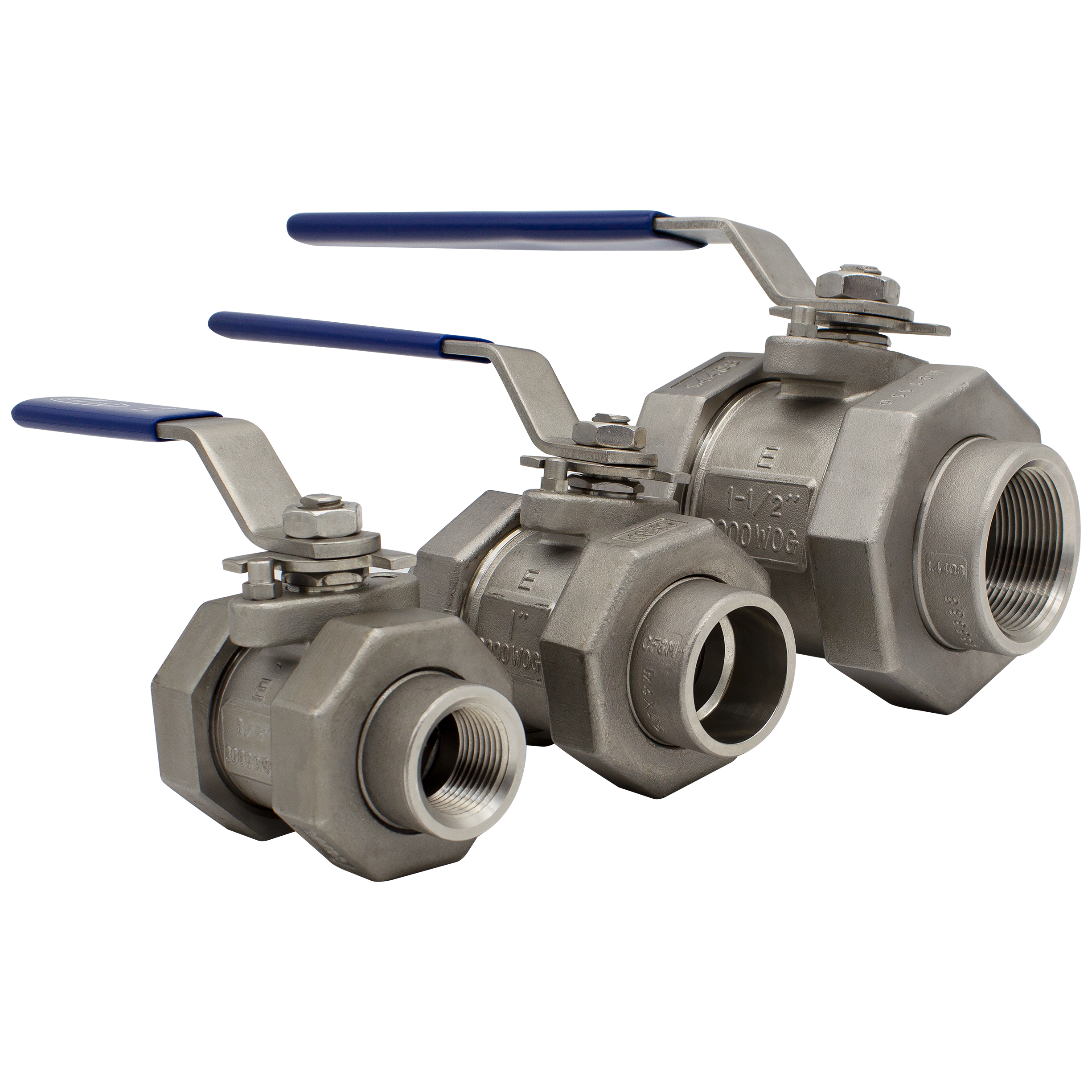

  • ½”-2” sizes available
  • Limited quantities available

Catalog Page

Stainless High Pressure Double Union HSBV-501

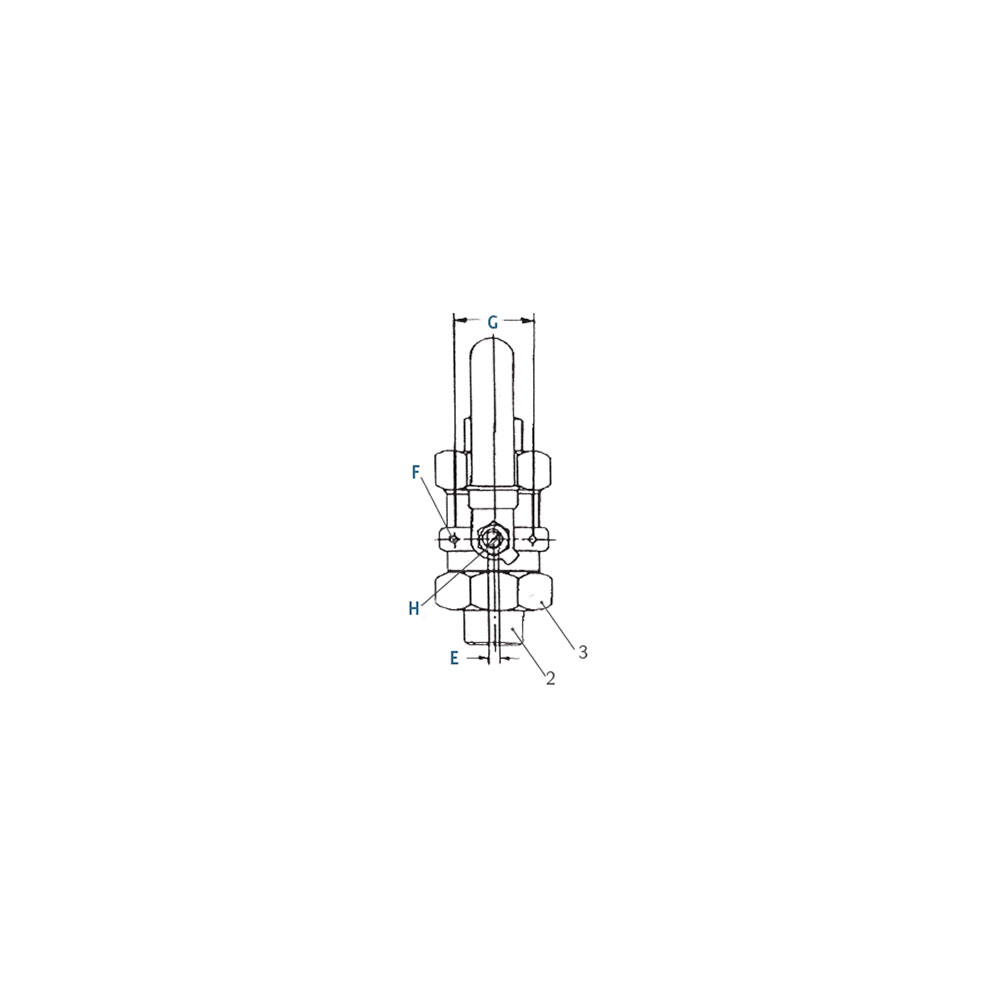

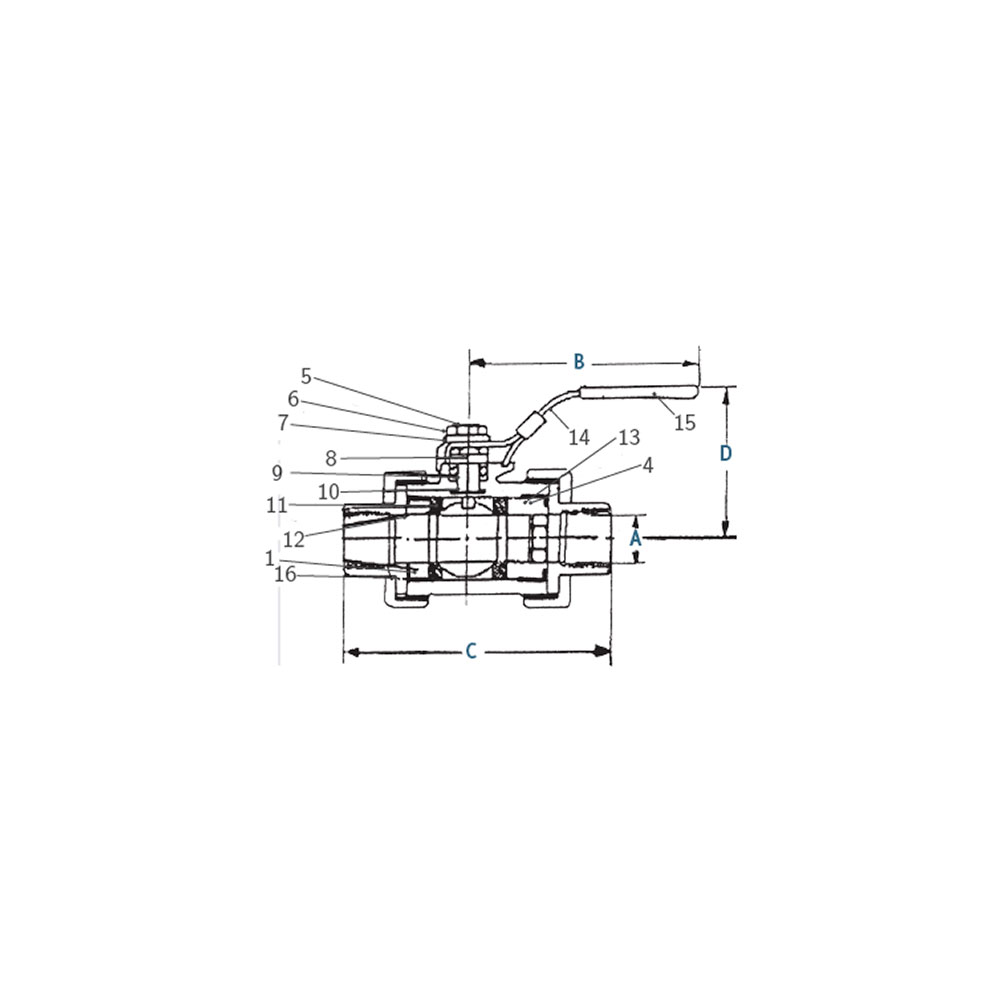

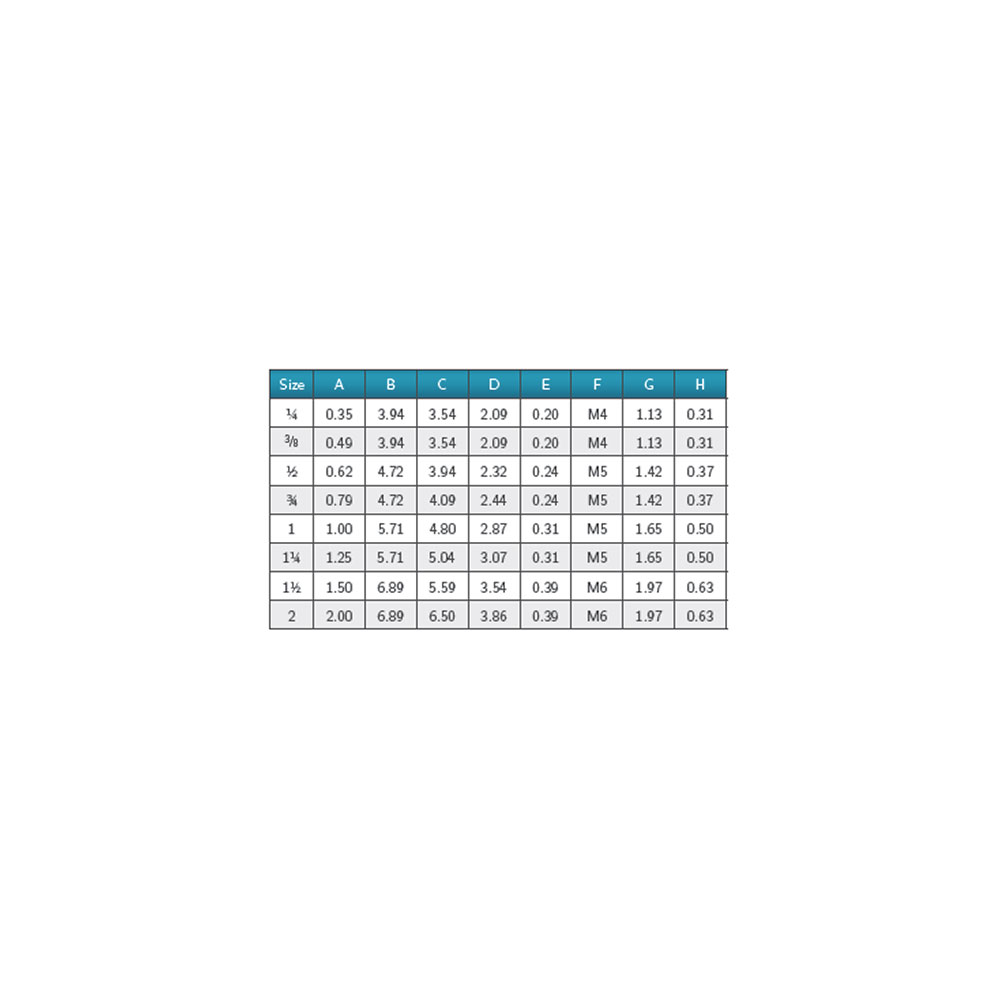

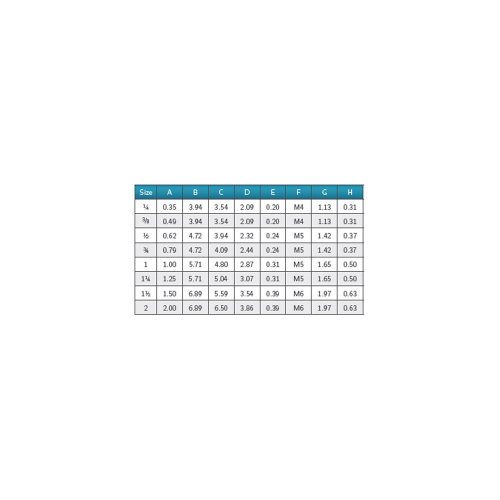

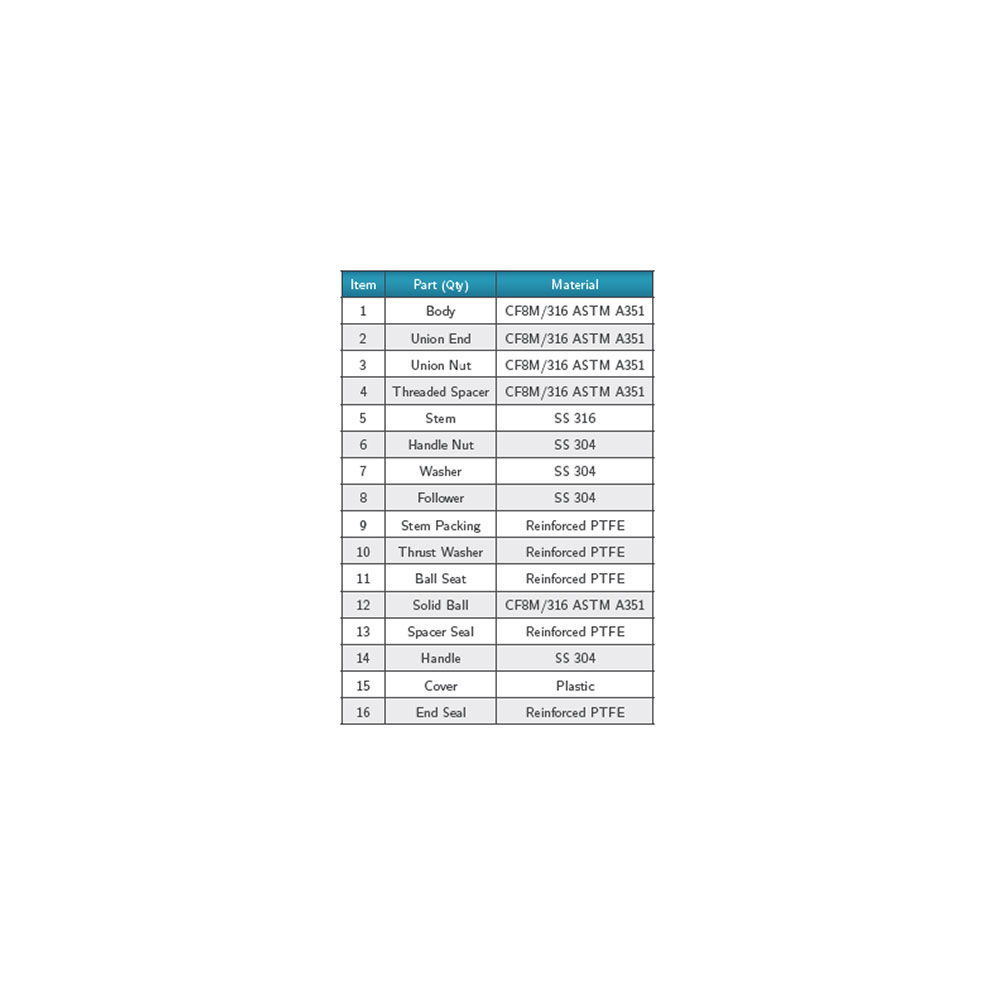

Tech Info

Click on an image to see a full size rendering.

Resources

Actuator Part Number Matrix

Ball Valve Pressure-Temp Chart

Ball Valve Seat Material Guidelines

Ball Valve Seat Material Types

Valve Inquiry Check List

Valve Part Number Matrix
