Overview

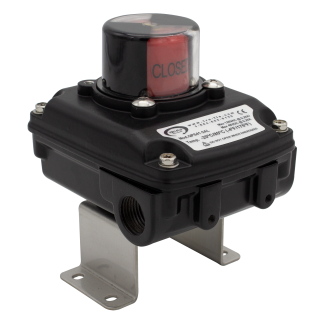

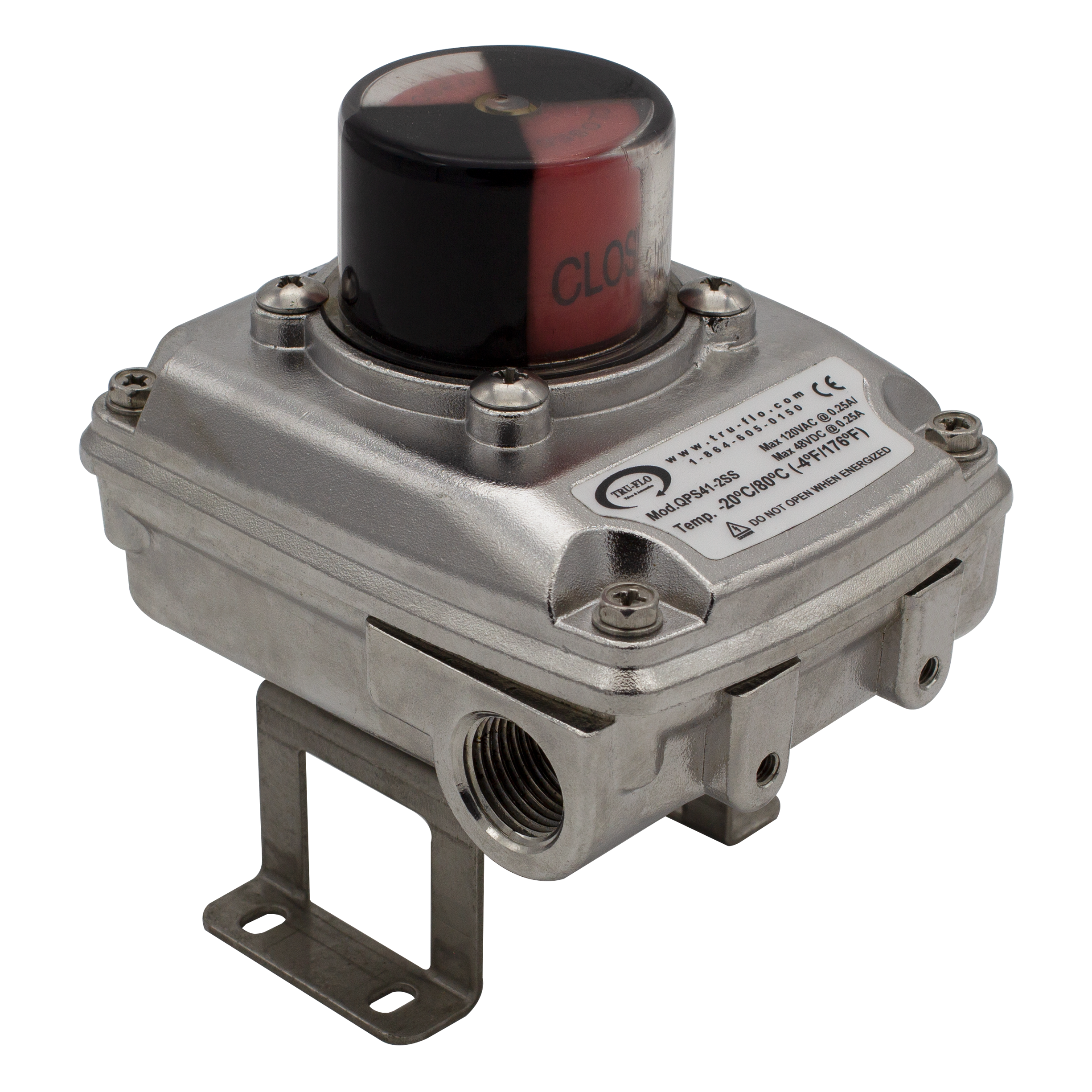

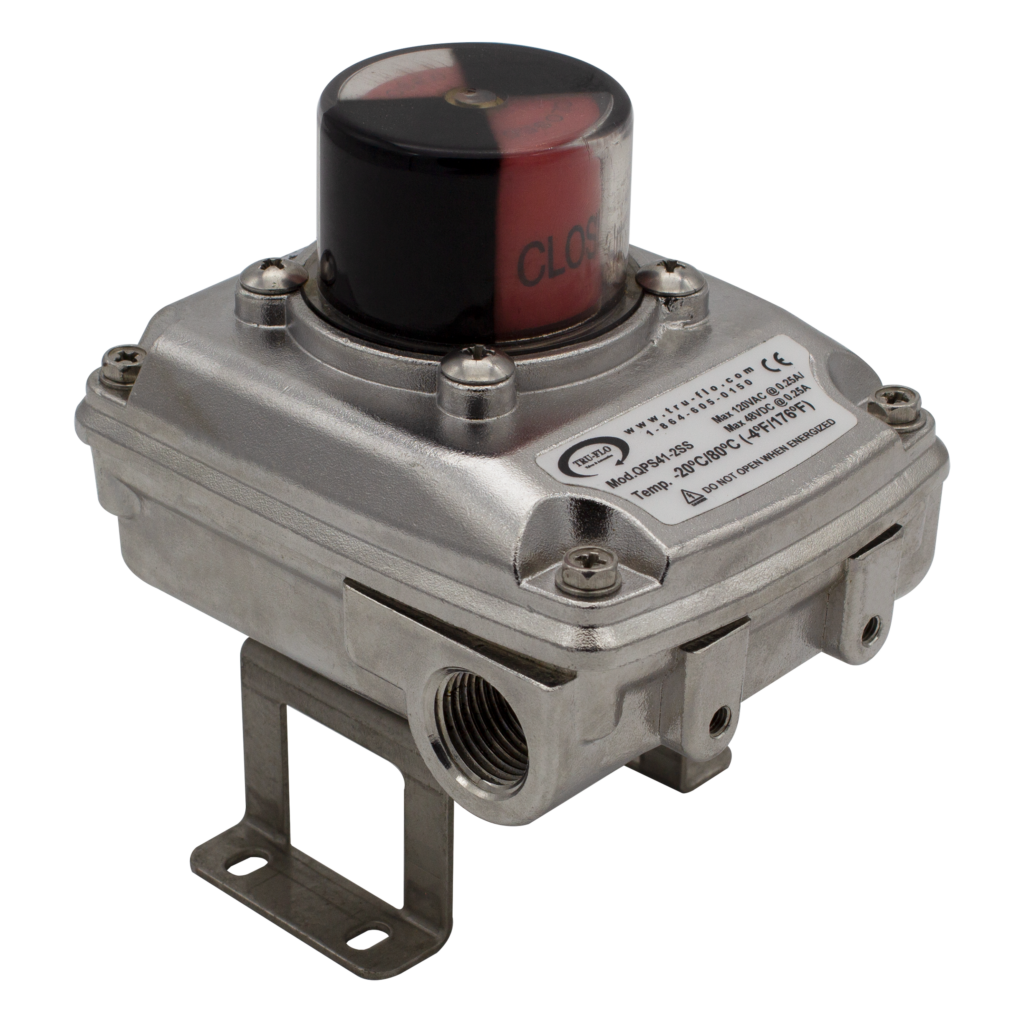

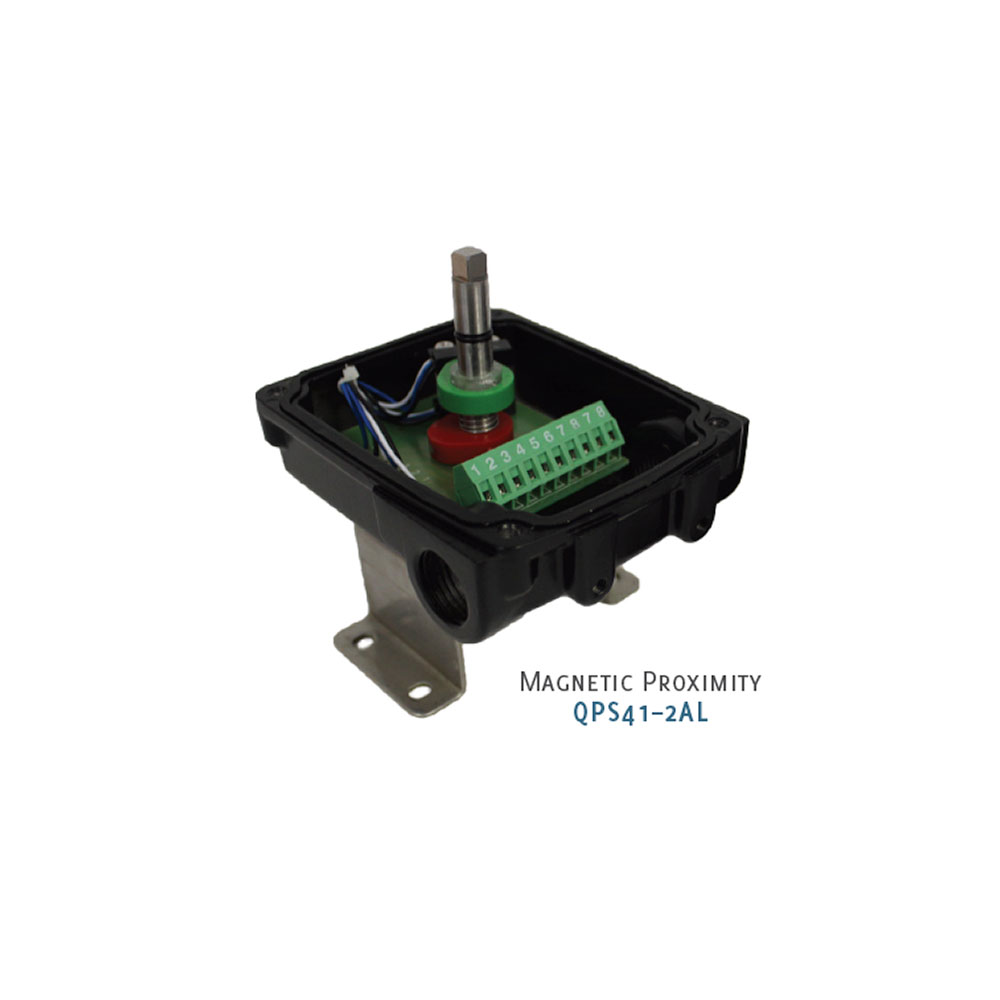

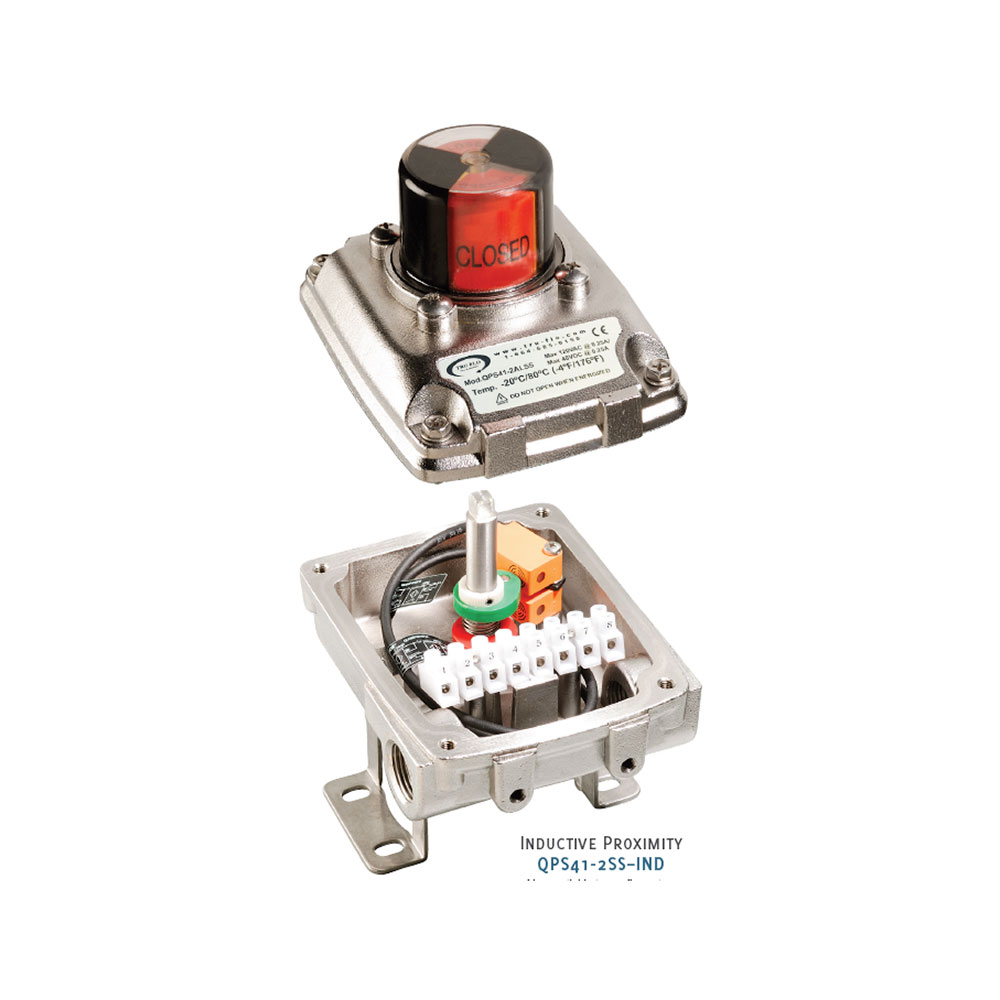

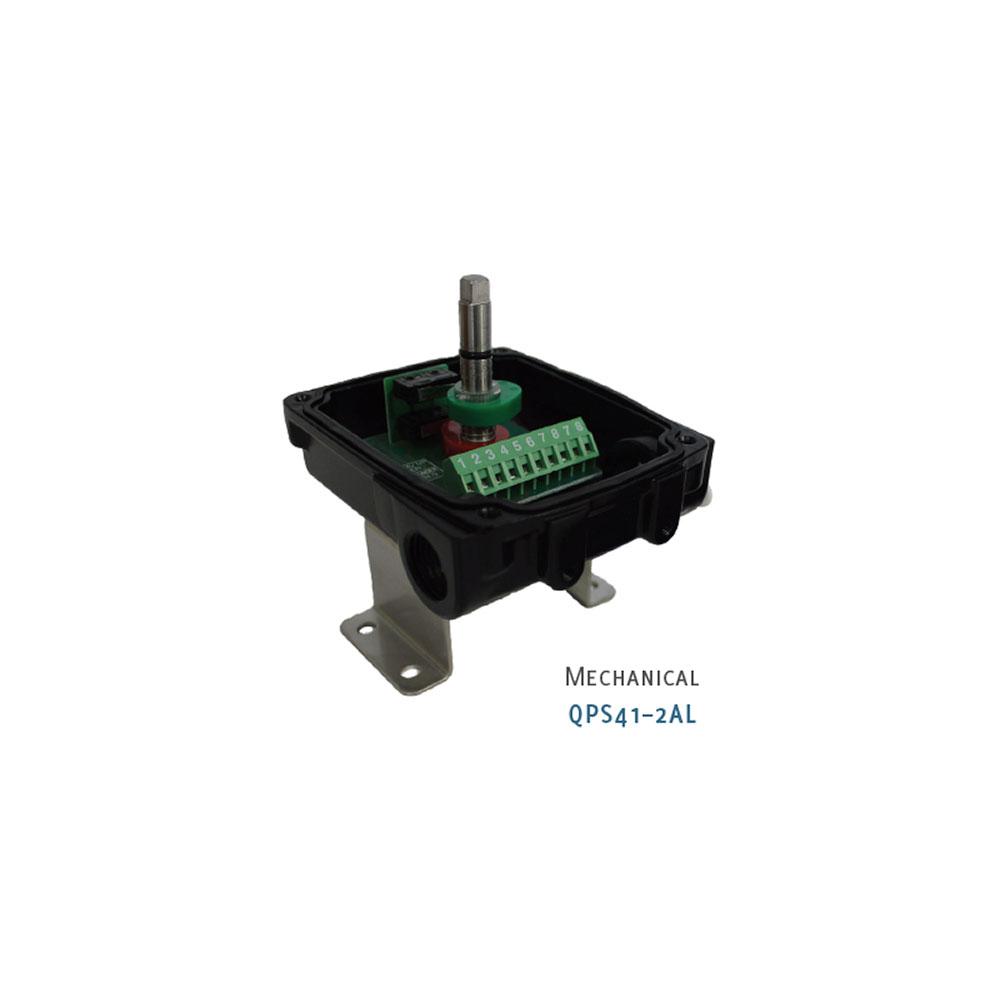

The TRU-FLO aluminum and stainless steel limit switch box is setting a new standard for cost effective compact limit switches. Both switches are available with mechanical, proximity, and inductive switches. These options allow for a low cost switch based on the needs and wants of the particular application.

• Simple operating position changes with quick set cams
• Compact design for small valve envelope size

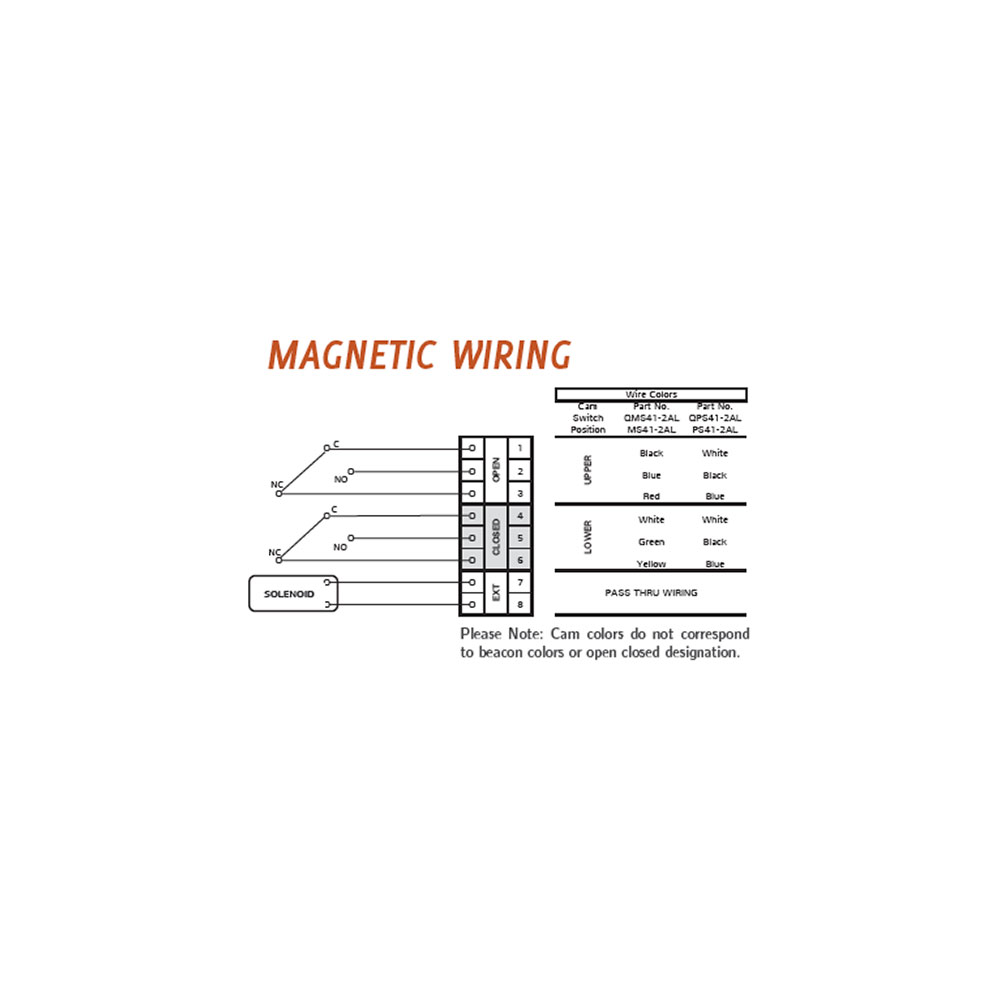

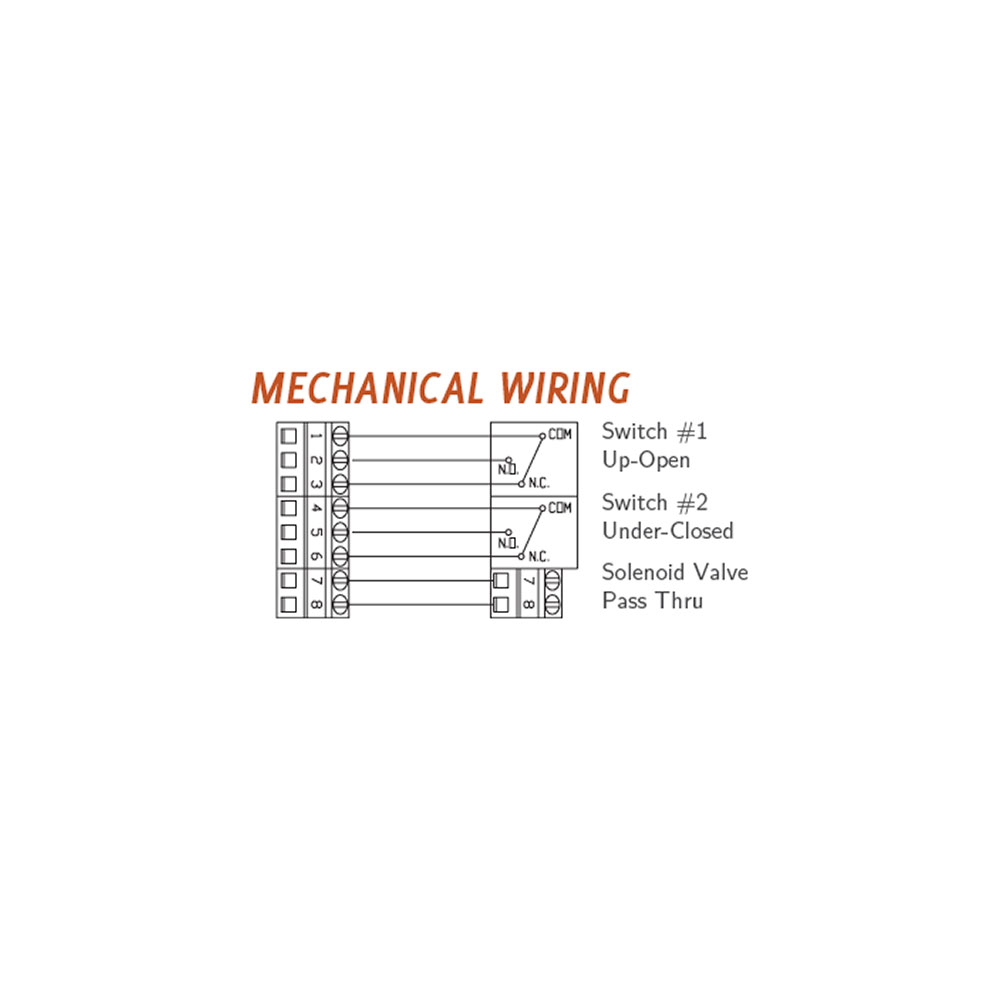

• Easy wiring with two conduit entries M20x1.5 (½”NPT available) and one terminal strip with 8-point angled
• High visibility indicator comes standard
• Stainless steel captive cover bolts
• NAMUR 80×30 H30 stainless steel mounted bracket included
• Available in stainless steel and technopolymer
